Запчасти Case IH FARMALL 80N (55.513.050) - VAR - 330273 - TRANSMISSION, CONTROLS, LEVER, SWITCH, HI-LO, W/O CAB (55) - ELECTRICAL SYSTEMS

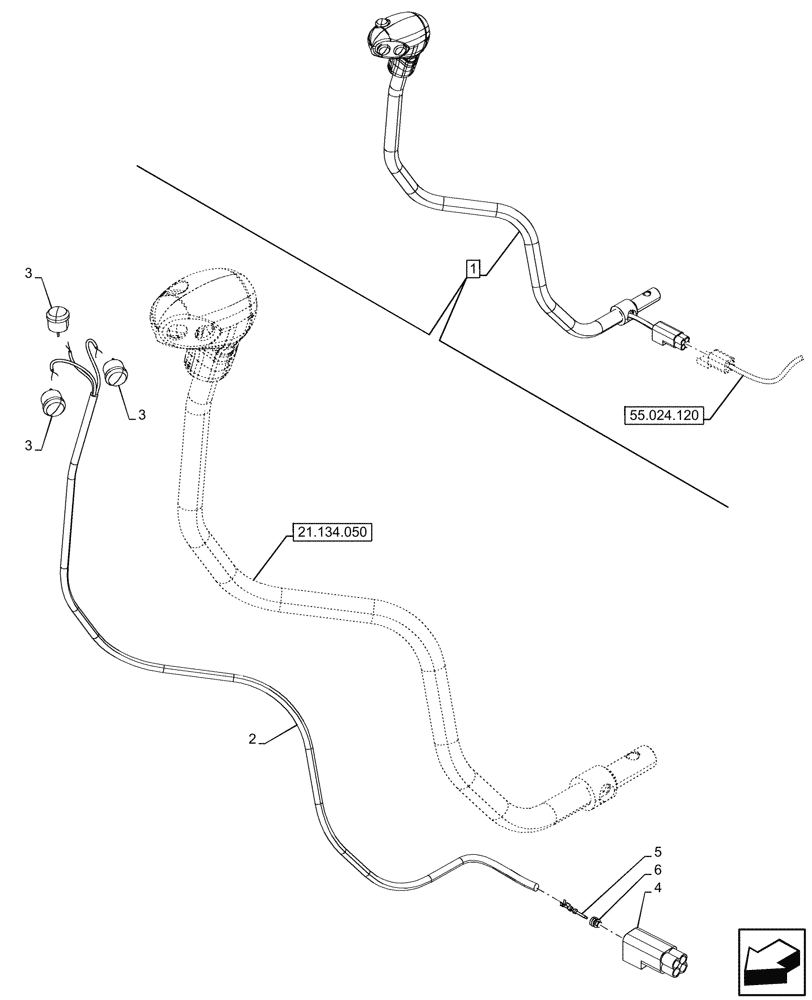

Схема запчастей Case IH FARMALL 80N - (55.513.050) - VAR - 330273 - TRANSMISSION, CONTROLS, LEVER, SWITCH, HI-LO, W/O CAB (55) - ELECTRICAL SYSTEMS
21.134.050
1
6
3
3
3
2
4
5
55.024.120

Артикул

Название

Примечание

Количество

1

87471693

LEVER

ASSY, Hi-Lo, Incl 2 - 6

1шт.

See also Components in Figure 21.134.050

1шт.

2

87520251

WIRE HARNESS

1шт.

3

87398154

SWITCH

Transmission Control

3шт.

4

5174954

MULTIPOLE CONNECTOR,Male, 4 Pole

1шт.

5

5174873

CABLE TERMINAL,Tin, 0.5 - 1mm

4шт.

6

5174876

GROMMET,6mm OD x 6.5mm H, Red

4шт.

Выбрано товаров: 7
