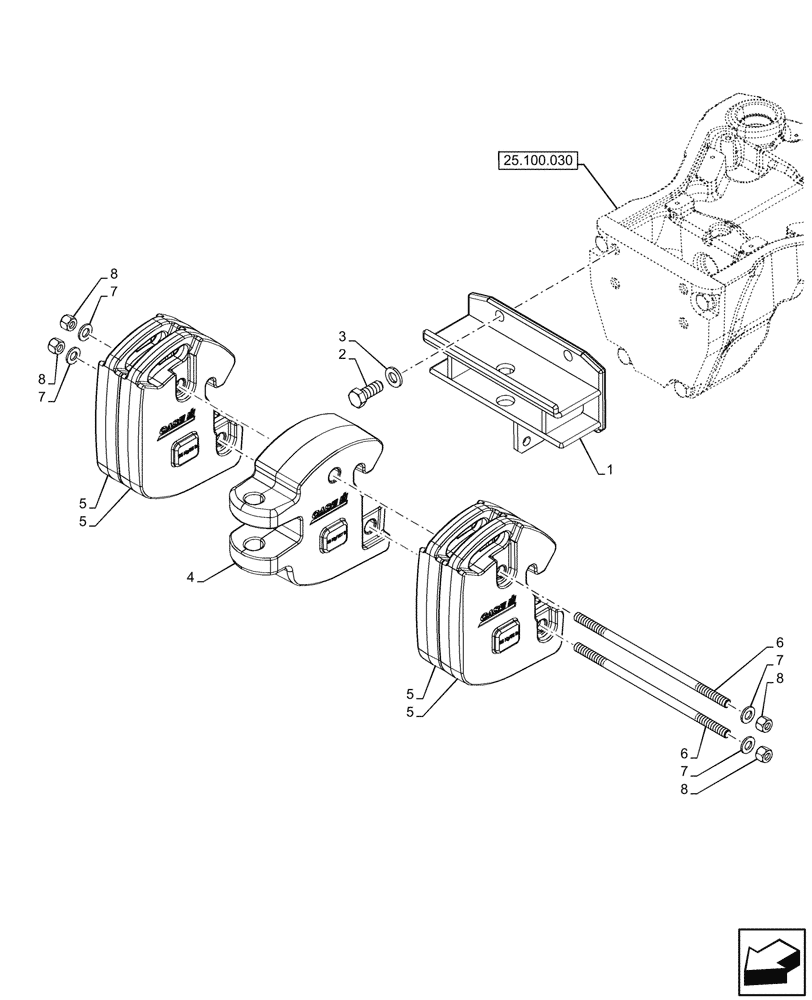

Запчасти Case IH FARMALL 80N (39.140.020) - VAR - 338243 - FRONT, BALLAST (148 KG) (39) - FRAMES AND BALLASTING

1

47135563

SUPPORT

Front Ballast

1шт.

2

11124734

BOLT,Hex, M20 x 50, 10.9, Full Thd

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

4

47135622

WEIGHT,48Kg

48Kg

1шт.

5

47135623

PLATE,25kg

25Kg

4шт.

6

82028306

THREADED ROD,M16 x 2 x 385mm L

M16 x 2 x 385mm

2шт.

7

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

4шт.

8

12163325

NUT,Hex, M16 x 2, Cl 10, ZND

Hex, M16 x 2, Cl 10, ZND

4шт.
