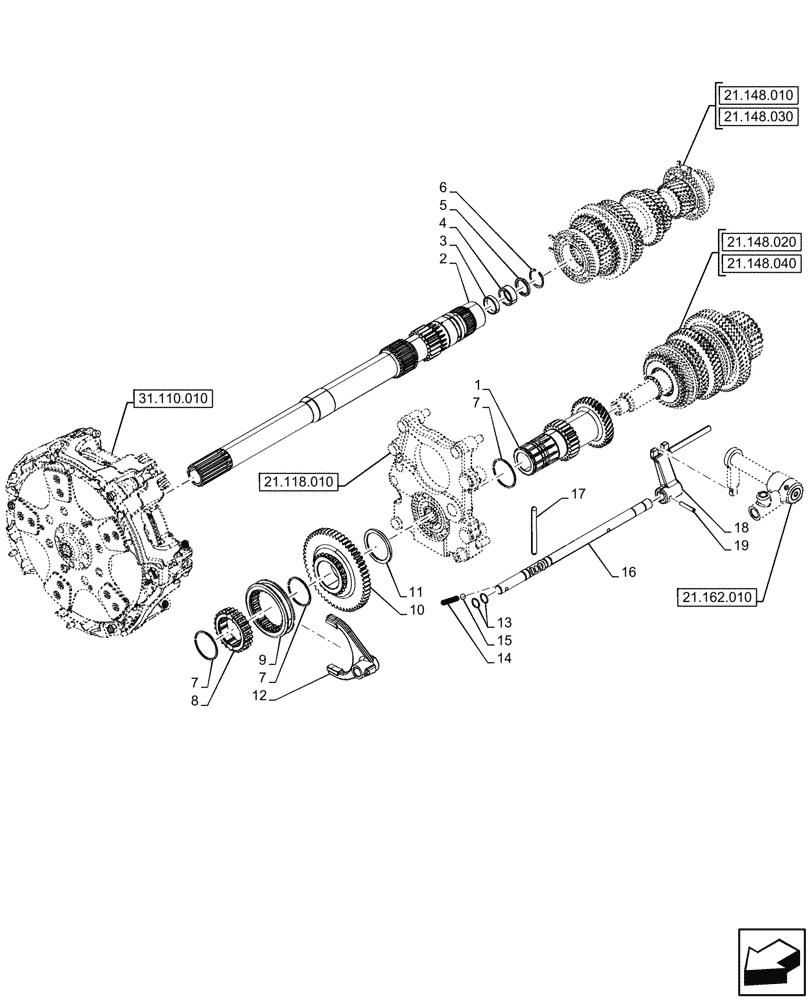

Запчасти Case IH FARMALL 80N (21.160.010) - VAR - 330111 - CREEPER, SHUTTLE (21) - TRANSMISSION

1

5177504

GEAR,33T / 24T

Z 33, Z 24

1шт.

2

47962776

CLUTCH INPUT SHAFT,33.3/45.6mm ID x 686mm L, 14/19/24/26T

656mm

1шт.

3

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

4

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

5

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

6

5180152

CIRCLIP,27.8mm ID

1шт.

7

5168188

SNAP RING,1.5mm Thk, Ext

3шт.

8

5172883

GEAR,50T Internal / 75T External

Z 24

1шт.

9

5173937

SLEEVE,68mm ID x 75mm OD x 21mm L

Z 24

1шт.

10

5172890

GEAR,55T

Z 55

1шт.

11

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

12

5173116

YOKE,16mm Hole Dia

1шт.

13

13397776

SNAP RING,M16, Int

2шт.

14

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

15

20063390

BALL,8.73mm OD

1шт.

16

47130804

ROD,15.5mm OD x 352mm L

352mm

1шт.

17

5173942

PAWL,8.5mm OD x 95.5mm L

1шт.

18

5178232

DOG

1шт.

19

13942570

ROLL PIN,M6 x 30mm

1шт.
