Запчасти Case IH FARMALL 80N (21.104.140) - VAR - 743915 - DELIVERY PIPE, STABILIZER, W/O MID MOUNT VALVES (21) - TRANSMISSION

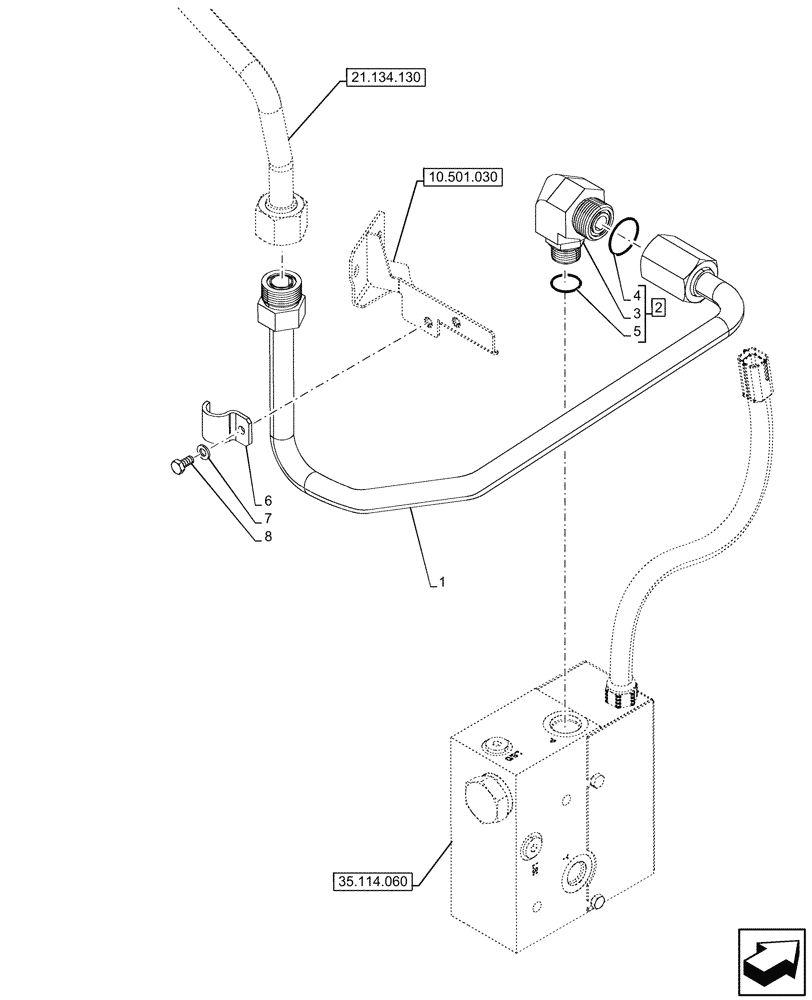

Схема запчастей Case IH FARMALL 80N - (21.104.140) - VAR - 743915 - DELIVERY PIPE, STABILIZER, W/O MID MOUNT VALVES (21) - TRANSMISSION
10.501.030
8
2
6
5
1
7
4
3
35.114.060
21.134.130

Артикул

Название

Примечание

Количество

1

47947372

PIPE

Delivery to Stab less TBV

1шт.

2

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

5193286

BRACKET

1шт.

7

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

8

11194379

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD

1шт.

Выбрано товаров: 8
