(0.88.0[03]) - AIR CONDITIONING - FILTER AND PIPES (VAR.330641 / 743539; VAR.332641 / 743540)

Запчасти Case IH FARMALL 75N (0.88.0[03]) - AIR CONDITIONING - FILTER AND PIPES (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE

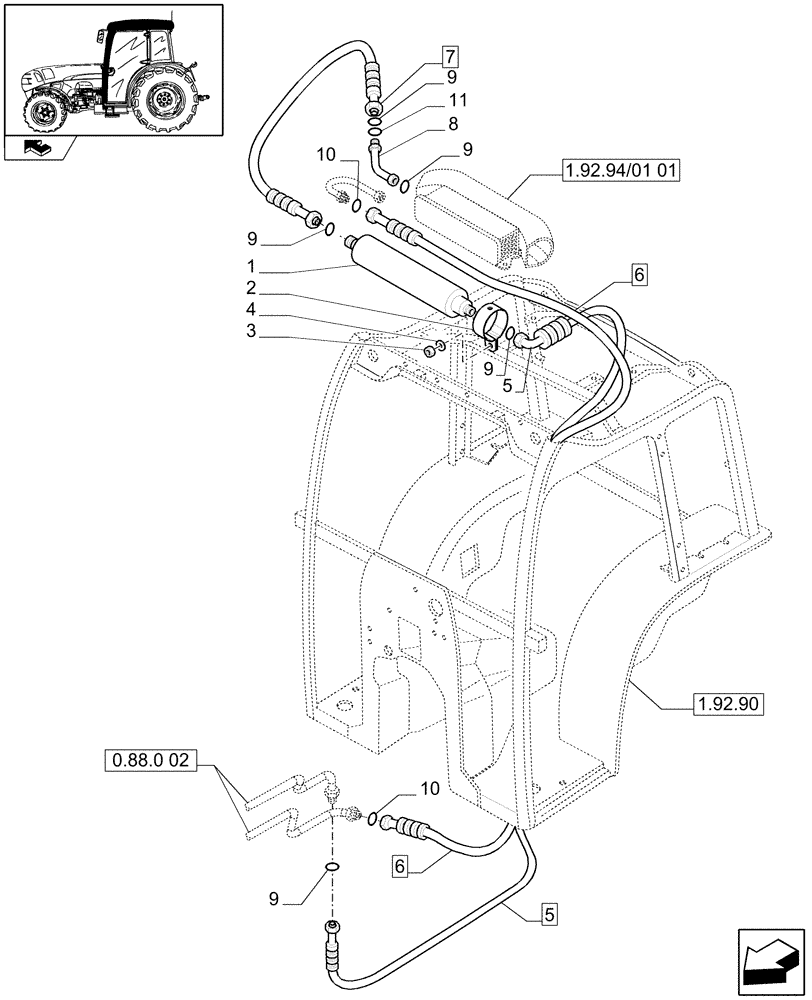

Схема запчастей Case IH FARMALL 75N - (0.88.0[03]) - AIR CONDITIONING - FILTER AND PIPES (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE
9
9
1.92.94/01 01
8
6
10
1
9
4
6
1.92.90
7
9
10
0.88.0 02
9
5
2
home
3
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87661357

FILTER

1шт.

Valid with FARMALL 75N, FARMALL 85N, QUANTUM 65v, QUANTUM 75V, QUANTUM 85N, QUANTUM 85V Models

1шт.

2

84267227

COLLAR CLAMP,46mm ID x 20mm Thk

2шт.

3

14496507

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

16100814

NUT,M8, Cl 8, DAC

2шт.

5

84149326

FLEXIBLE HOSE

2563 mm, Assy, Incl 9 (Q.ty 2)

1шт.

6

84160659

FLEXIBLE HOSE,15.9mm ID x 2700mm L

2700 mm, Assy, Incl 10, Serial Range: -C7267

1шт.

6

47361498

FLEXIBLE HOSE

2550 mm, Start Serial: D7267

1шт.

7

87718371

RIGID TUBE

Assy, Incl 9 (Q.ty 2)

1шт.

8

87719867

HYD CONNECTOR

Assy, Incl 9, 11

1шт.

9

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

1шт.

10

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

11

452005C1

O-RING

1шт.
