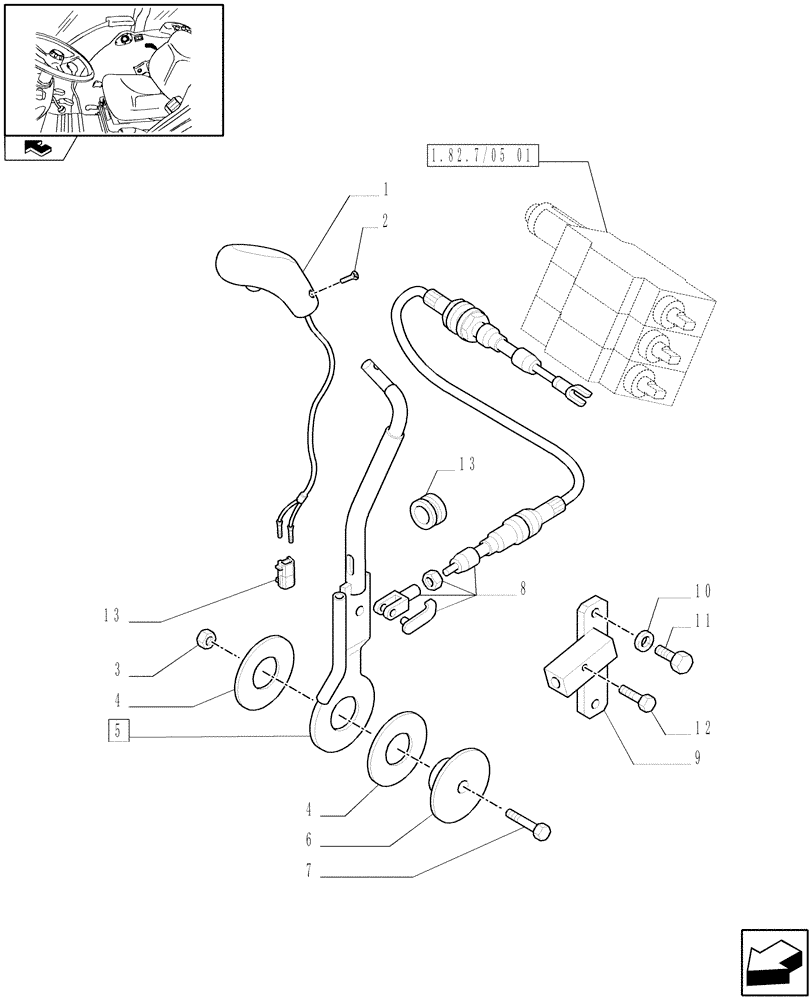

Запчасти Case IH FARMALL 75N (1.92.82/06[02]) - THREE REMOTE VALVES WITH FLOW DIVIDER FOR MDC - CONTROL LEVER (VAR.332391-335391 / 743526) (10) - OPERATORS PLATFORM/CAB

1

47132377

KNOB

1шт.

2

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

1шт.

3

16102314

THIN NUT,M8 x 1.25, Cl 04

1шт.

4

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

5

47132375

LEVER

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

1шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

1шт.

8

5199201

CABLE

L=700 mm, W/CAB

1шт.

8

84496179

FLEXIBLE CABLE

L/CAB

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

12483580

MULTIPOLE CONNECTOR

1шт.
