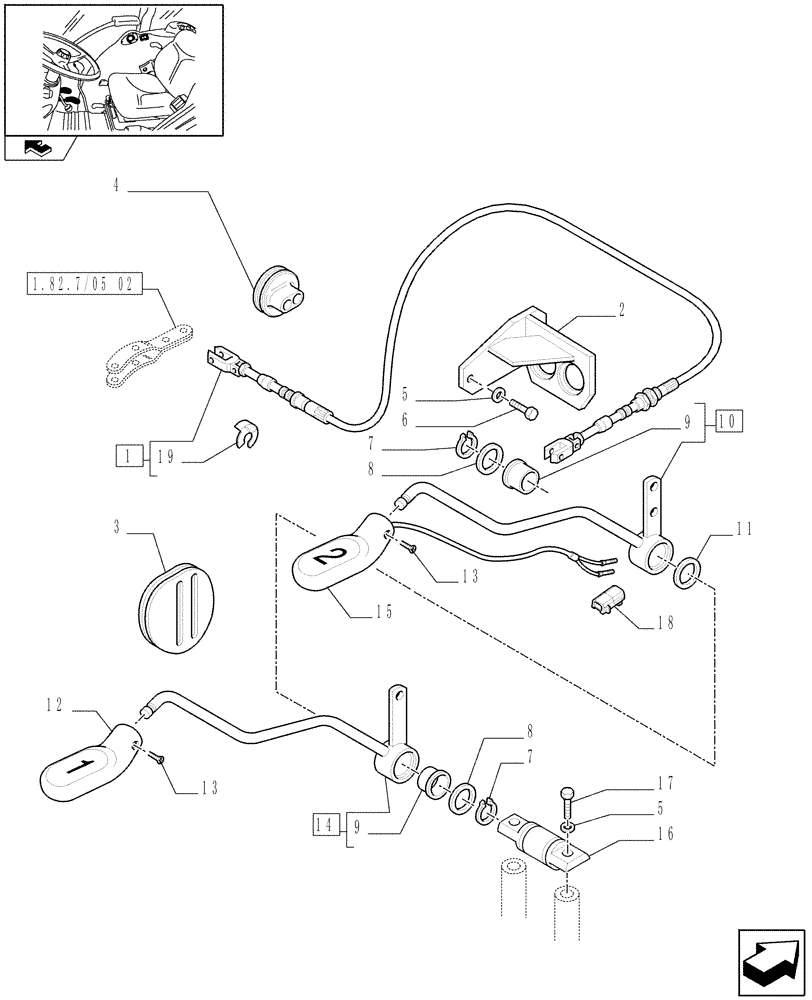

Запчасти Case IH FARMALL 75N (1.92.82/06[01]) - THREE REMOTE VALVES WITH FLOW DIVIDER FOR MDC - LEVER AND KNOB (VAR.332391-335391 / 743526) (10) - OPERATORS PLATFORM/CAB

1

87744425

CABLE

W/CAB, ASSY, Incl 19

2шт.

1

84496179

FLEXIBLE CABLE

L/CAB, ASSY, Incl 19

2шт.

2

87487382

SUPPORT

1шт.

3

5188994

BELLOWS

1шт.

4

84131482

GROMMET

1шт.

5

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

6

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

7

11066976

SNAP RING,M21, Ext

2шт.

8

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

9

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

10

84178447

ASSY, Incl 9

1шт.

11

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

21 x 35

1шт.

12

47132372

KNOB

1шт.

13

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

2шт.

14

5187576

LEVER

ASSY, Incl 9

1шт.

15

84178708

KNOB

1шт.

16

5133375

PIN,20mm OD x 100mm L

1шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

12483580

MULTIPOLE CONNECTOR

1шт.

19

84349366

CIRCLIP

D=22.7

1шт.
