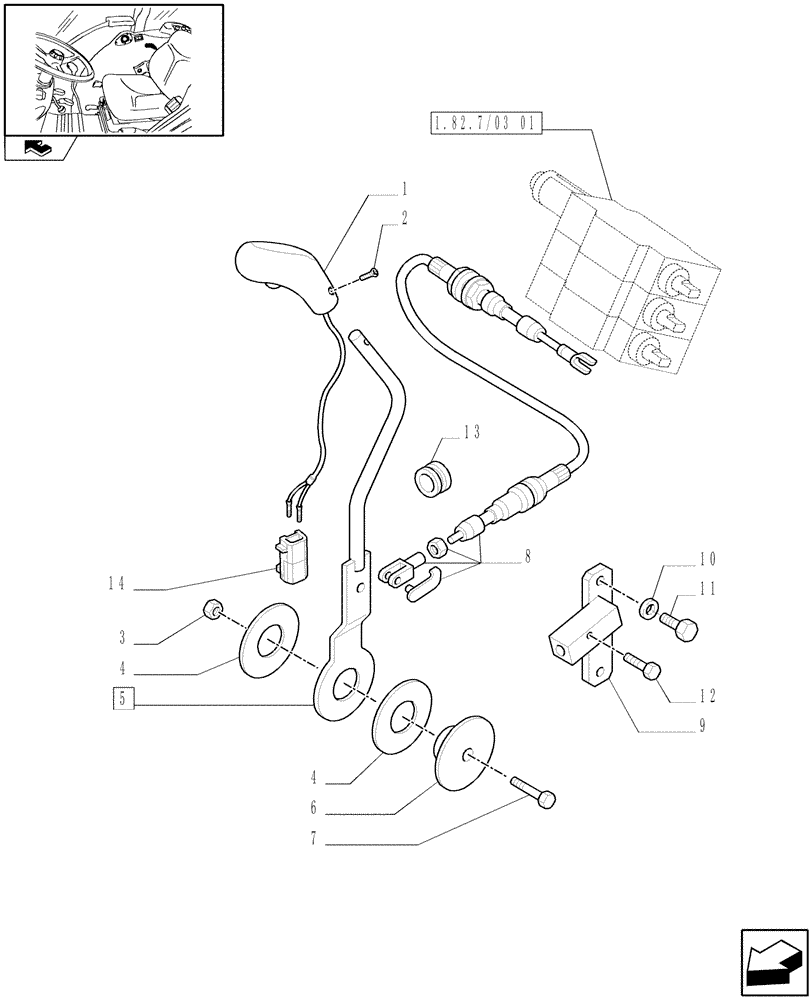

Запчасти Case IH FARMALL 75N (1.92.82/03[02]) - THREE REMOTE VALVES & FLOW-RATE REGULATOR FOR MDC - CONTROL LEVER (VAR.331390 / 743525) (10) - OPERATORS PLATFORM/CAB

1

82026097

KNOB

1шт.

2

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

1шт.

3

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

4

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

2шт.

5

84519053

LEVER

1шт.

5

84519054

LEVER

1шт.

6

47126539

SPACER,8.5mm ID x 50mm OD x 11mm L

1шт.

7

16043628

BOLT,Hex, M8 x 25mm, Cl 8.8

2шт.

8

5199201

CABLE

L=700 mm, W/CAB

1шт.

8

84496179

FLEXIBLE CABLE

L/CAB

1шт.

9

5188363

BLOCK

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

1шт.

13

10397580

INSULATING RING,16mm ID x 22mm Groove D x 29mm OD

16 x 2.5, W/CAB

1шт.

14

12484680

MULTIPOLE CONNECTOR,Female, 2 Pin

1шт.
