(1.92.29/04[01A]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - BEGIN YR 26-JUN-2012 (VAR.330118 / 743508; VAR.332271)

Запчасти Case IH FARMALL 75N (1.92.29/04[01A]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - BEGIN YR 26-JUN-2012 (VAR.330118 / 743508; VAR.332271) (10) - OPERATORS PLATFORM/CAB

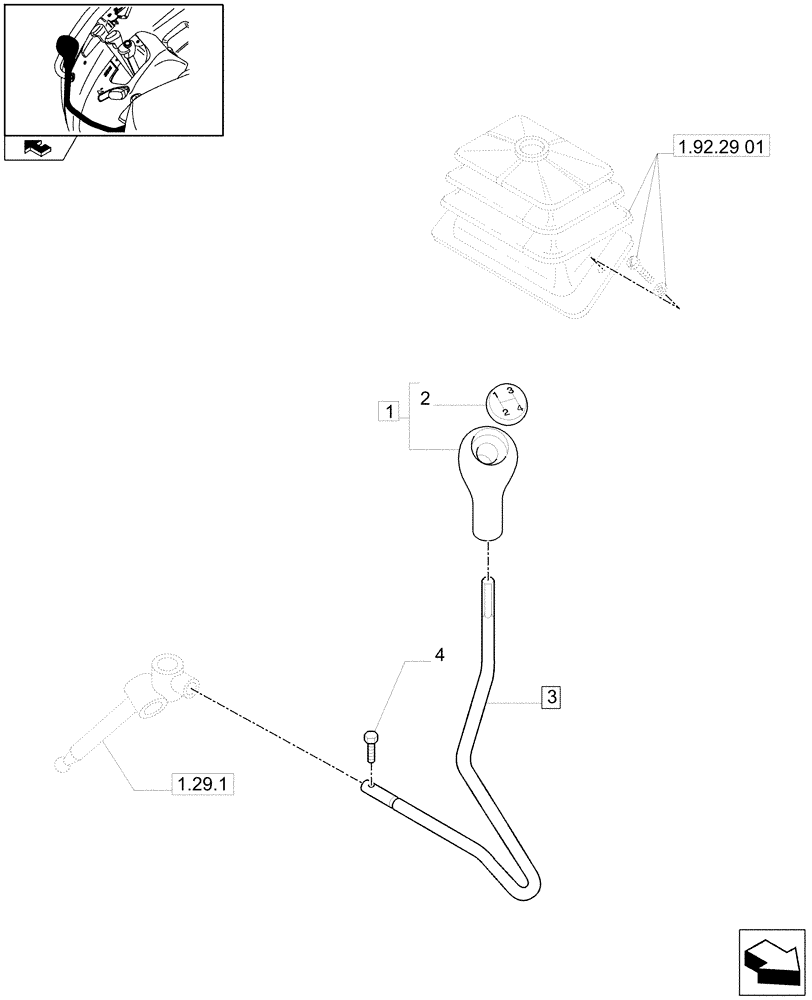

Схема запчастей Case IH FARMALL 75N - (1.92.29/04[01A]) - 16X16 HYDR. TRANSM. WITH SYNCHRO GEARS AND POWER SHUTTLE - SHIFTING CONTROLS - BEGIN YR 26-JUN-2012 (VAR.330118 / 743508; VAR.332271) (10) - OPERATORS PLATFORM/CAB
1
1.92.29 01
1.29.1
home
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5184458

KNOB

ASSY, Incl. 2

1шт.

2

5172479

CUP COVER

1шт.

3

84551378

CONTROL LEVER

Incl. 1, 4, W/CAB

1шт.

4

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.
