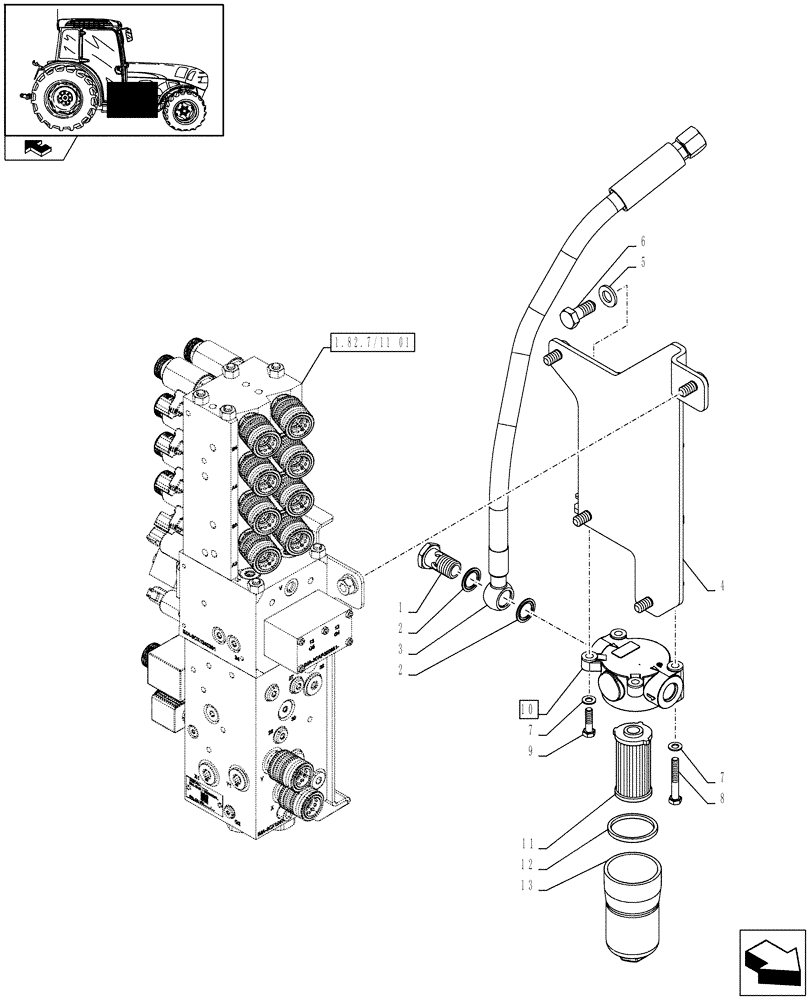

Запчасти Case IH FARMALL 75N (1.82.7/12) - ELECTRONIC MID MOUNTED VALVES - FILTER (07) - HYDRAULIC SYSTEM

1

5182095

BANJO BOLT,M22 x 1.5 x 47mm

1шт.

2

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

2шт.

3

84524193

RETURN PIPE

1шт.

4

84544669

SUPPORT

1шт.

5

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

4шт.

6

11115634

SCREW,Hex, M14 x 35mm, Cl 10.9

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

8

16044324

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

9

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

10

5197006

FILTER

1шт.

11

5178100

ELEMENT

1шт.

Valid with FARMALL 75N, FARMALL 85N, QUANTUM 65v, QUANTUM 75V, QUANTUM 85N, QUANTUM 85V Models

1шт.

12

5194880

O-RING KIT

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.
