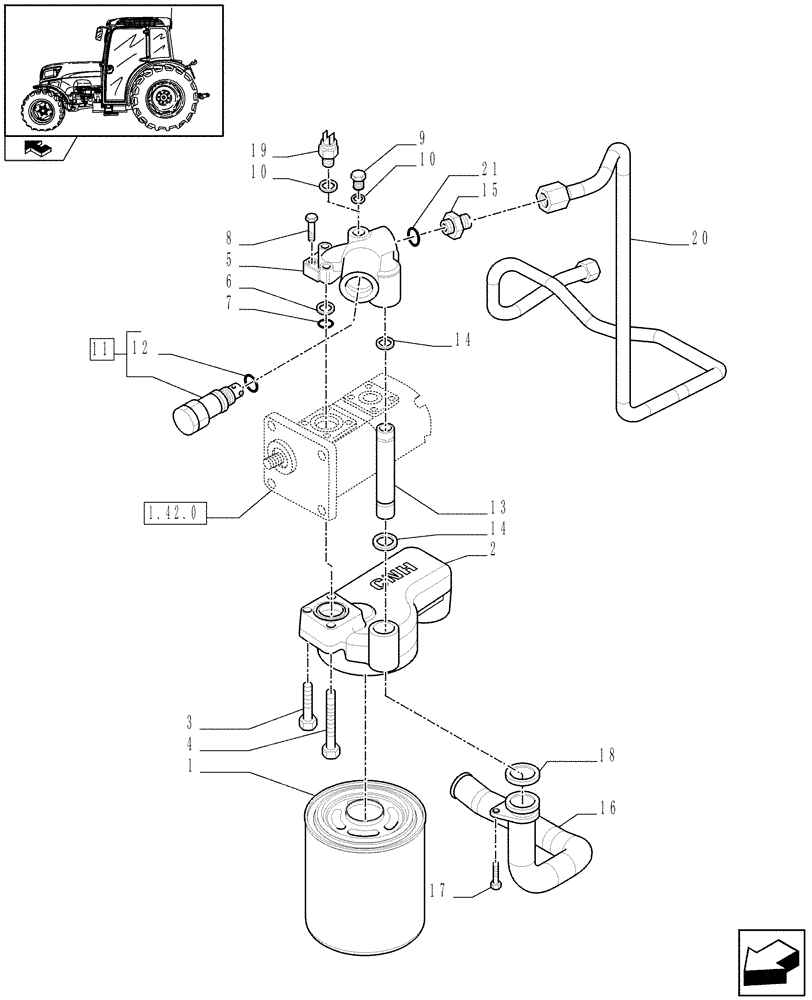

Запчасти Case IH FARMALL 75N (1.82.1[03]) - OIL FILTER, PRESSURE RELIEF VALVE, SUPPORTS AND PIPES (07) - HYDRAULIC SYSTEM

1

84123428

HYDRAULIC OIL FILTER

1шт.

Valid with FARMALL 75N, FARMALL 85N, QUANTUM 65v, QUANTUM 75V, QUANTUM 85N, QUANTUM 85V Models

1шт.

2

87684171

SUPPORT

1шт.

3

14306824

HEX SOC SCREW,M8 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

4

14306920

HEX SOC SCREW,M8 x 1.25 x 50mm, Cl 8.8, Full Thd

1шт.

5

87684173

SUPPORT

1шт.

6

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

1шт.

7

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

8

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

3шт.

9

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

10

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12 x 18 x 1.5

1шт.

11

5191767

HYDRAULIC VALVE,M28 x 1.5

ASSY, Incl 12

1шт.

12

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

13

47129568

TUBE

1шт.

14

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

15

5158802

HYD CONNECTOR,1-1/16" - 12 JIC x M22 x 1.5 ORB

1 1/16 - 12 - M22 x 1.5

1шт.

16

87588734

RIGID TUBE,45 mm OD

1шт.

17

16043420

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

18

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

19

87494632

PRESSURE SWITCH,M12 x 1.5

1шт.

Hydraulic Trailer Brake - Italy, VAR.333372-338372

1шт.

Safety Switch for Trailer Brake Circuit

1шт.

20

87588737

RIGID TUBE,18 mm OD

1шт.

Part Number is Valid for Std. Equipment when 3 Remotes for MDC (VAR.335391-336391-337391-338391) are Chosen

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
