Запчасти Case IH FARMALL 75N (1.82.1[01]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM

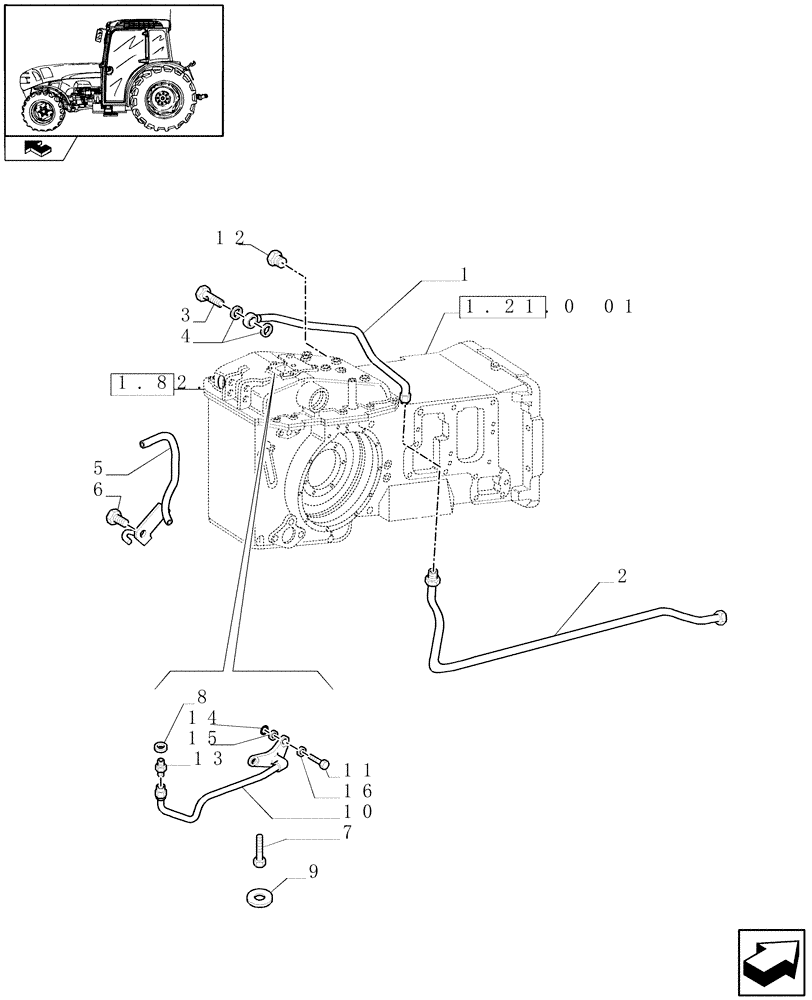

Схема запчастей Case IH FARMALL 75N - (1.82.1[01]) - LIFTER, LINES (07) - HYDRAULIC SYSTEM
12
home
16
14
8
2
4
9
6
15
10
1.82.0
1.21.0 01
7
3
11
1
5
13

Артикул

Название

Примечание

Количество

1

5174620

RIGID TUBE

Rear

1шт.

1

47131738

TUBE

1шт.

Less MDC Variant, VAR.337391

1шт.

2

87309266

RIGID TUBE

1шт.

3

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22

1шт.

3

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18 x 15

1шт.

Less MDC Variant, VAR.337391

1шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

23.5 x 30 x 1.5

2шт.

4

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

Less MDC Variant, VAR.337391

1шт.

5

5183493

RIGID TUBE

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

8

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

10

47130049

RIGID TUBE

1шт.

11

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

12

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

13

5158806

HYD CONNECTOR,7/8-14 UNF, M18 x 1.5

M18

1шт.

14

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

15

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

16

10571770

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

D=8

2шт.

Выбрано товаров: 22
