Запчасти Case IH FARMALL 75N (1.28.8/01[01]) - GEARBOX LUBRIFICATION PIPES AND OIL FILTER (03) - TRANSMISSION

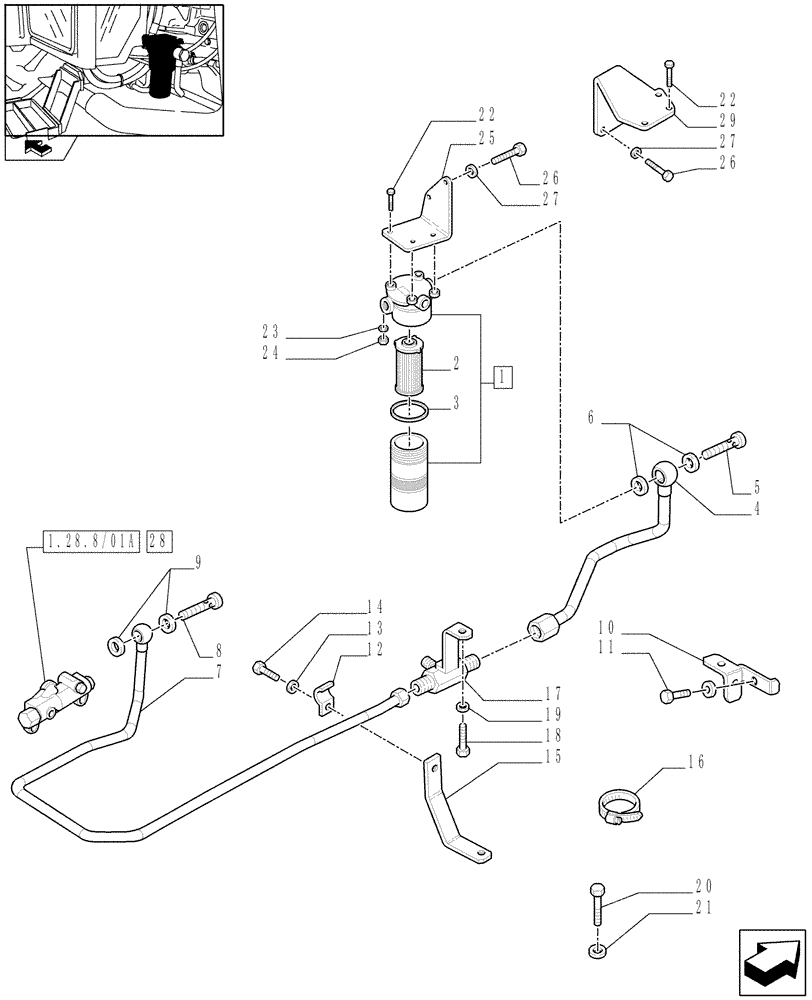

Схема запчастей Case IH FARMALL 75N - (1.28.8/01[01]) - GEARBOX LUBRIFICATION PIPES AND OIL FILTER (03) - TRANSMISSION
19
1
22
1.28.8/01a
10
16
15
6
27
26
2
28
26
9
23
5
4
3
20
29
24
13
7
14
21
8
27
home
11
18
22
25
12
17

Артикул

Название

Примечание

Количество

1

5197006

FILTER

ASSY, Incl 2, 3

1шт.

2

5194879

ELEMENT

1шт.

3

5194880

O-RING KIT

1шт.

4

84188790

HYD TUBE,16 mm OD

1шт.

5

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

6

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

5шт.

7

84521412

RIGID TUBE

1шт.

8

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

9

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

10

5177828

BRACKET

1шт.

11

15970611

BOLT,Hex, M10 x 1.25 x 22mm, Cl 5.8, Full Thd

1шт.

12

5193286

BRACKET

1шт.

13

10516474

LOCK WASHER

1шт.

14

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

1шт.

15

87499429

BRACKET

1шт.

16

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50 x 70

1шт.

17

84322718

HYD CONNECTOR

1шт.

18

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

20

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

21

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

22

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

23

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

24

43362

NUT,M8 x 1.25, Cl 10

3шт.

25

87590891

SUPPORT

L/CAB

1шт.

26

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

2шт.

27

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

28

5186117

HYDRAULIC VALVE

ASSY, Serial Range: -`0

1шт.

2WD Traction Selection for Mechanical Transmission, VAR.335280-339280

1шт.

29

87588829

SUPPORT

W/CAB

1шт.

Выбрано товаров: 30
