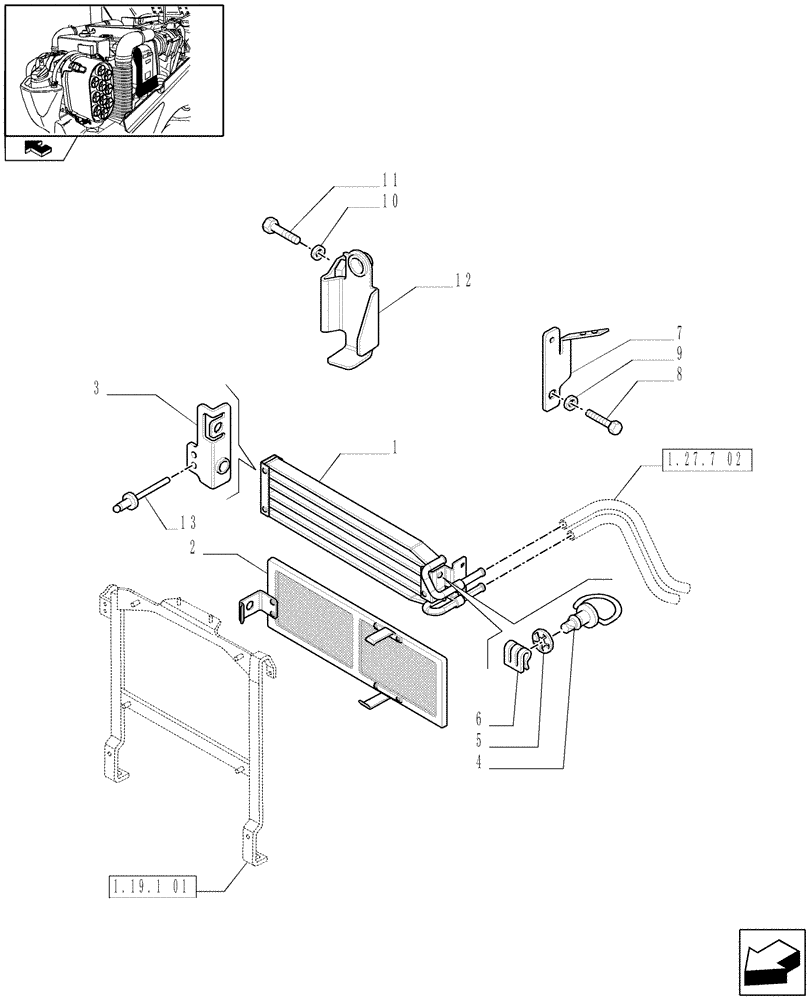

Запчасти Case IH FARMALL 75N (1.27.7[01]) - PUMP AND OIL COOLER - RADIATOR (VAR.335823-336823 / 743524; VAR.334823) (03) - TRANSMISSION

1

87543351

HEAT EXCHANGER

1шт.

2

87747297

FILTER

1шт.

Valid with FARMALL 75N, FARMALL 85N, QUANTUM 65v, QUANTUM 75V, QUANTUM 85N, QUANTUM 85V Models

1шт.

3

87705282

BRACKET

1шт.

4

87614935

STUD,6mm OD

1шт.

5

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

6

82004582

CLIP,Square, 25mm

1шт.

7

87588823

BRACKET

1шт.

8

14311031

HEX SOC SCREW,M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

9

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

12

87705259

SUPPORT

1шт.

13

14644190

RIVET,M3.9 x 11.1mm

2шт.
