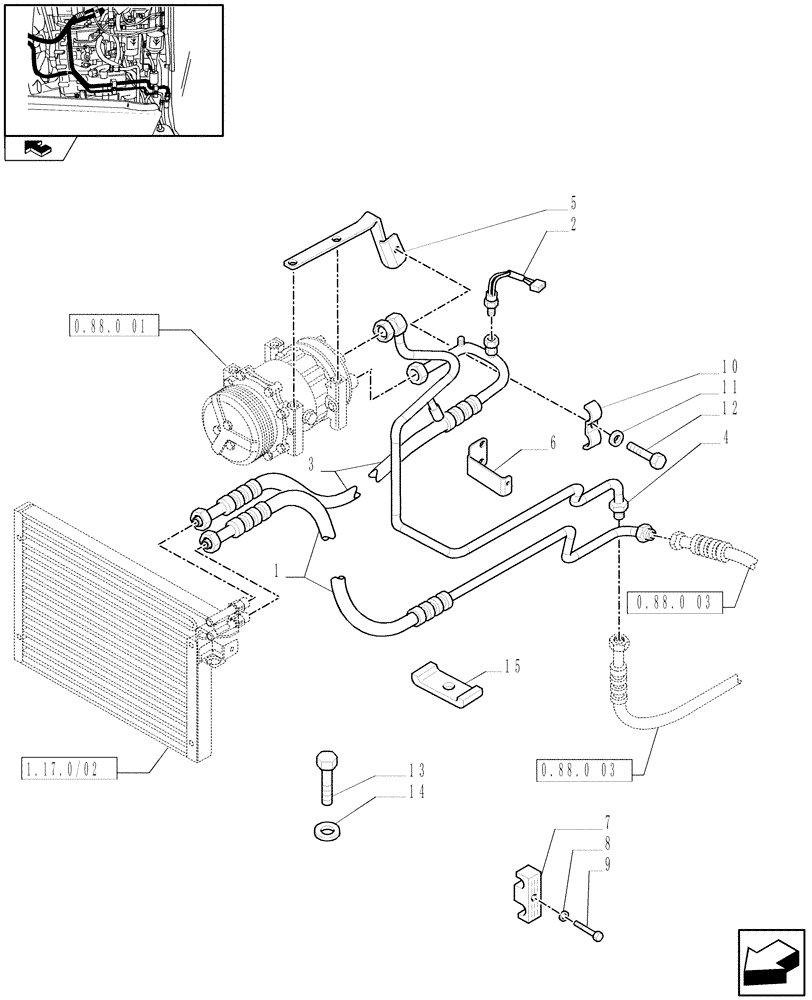

Запчасти Case IH FARMALL 75N (0.88.0[02]) - AIR CONDITIONING - PIPES AND RELATED PARTS (VAR.330641 / 743539; VAR.332641 / 743540) (01) - ENGINE

1

84149329

FLEXIBLE HOSE

1шт.

2

87663969

PRESSURE SWITCH

1шт.

3

87719290

RIGID TUBE,10.3 mm ID x 18.8 mm OD

1шт.

4

87719288

RIGID TUBE

1шт.

5

87719291

BRACKET

1шт.

6

87718380

BRACKET

, Serial Range: -C6833

1шт.

7

87571081

BRACKET

2шт.

8

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

10

44908518

CLAMP

1шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

14305424

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

1шт.

13

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

, Serial Range: -C6833

2шт.

14

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

, Serial Range: -C6833

2шт.

15

87721287

BRACKET

1шт.
