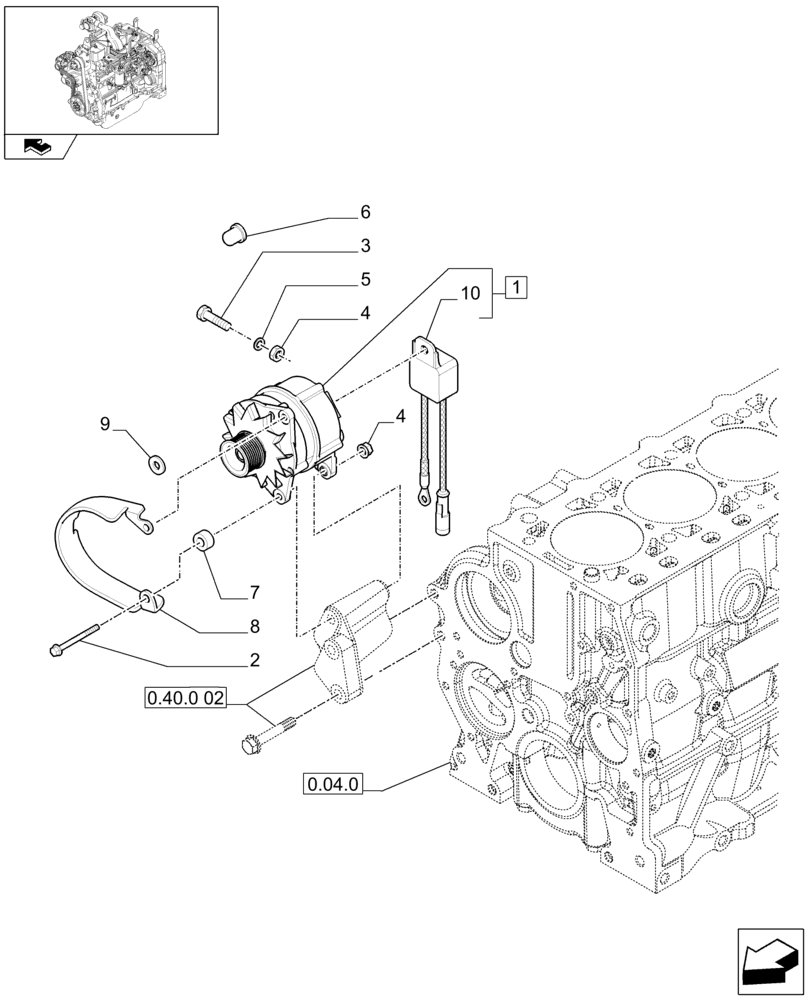

Запчасти Case IH FARMALL 75N (0.40.0[01]) - ENGINE ALTERNATOR (01) - ENGINE

1

87311822

ALTERNATOR,120A, W/ Pulley

120A, ASSY, Serial Range: -C7309

1шт.

1

47383500

ALTERNATOR,14V, 120A, W/Pulley

14V, 120A, ASSY, Start Serial: D7309

1шт.

1

87311822R

REMAN-ALTERNATOR

Remanufactured Alternator, ASSY

1шт.

1

87311822C

CORE-ALTERNATOR

Return number, ASSY

1шт.

2

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.

3

11343824

BOLT,Hex, M10 x 1.25 x 50, 8.8

1шт.

4

12164714

NUT,M10 x 1.25, Cl 8

2шт.

5

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

6

5132136

CAP COVER,M8

1шт.

7

87750575

SPACER,10.5mm ID x 22mm OD x 11mm L

10.5 x 22 x 11

1шт.

8

87750501

SHIELD

1шт.

9

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

10

87537543

CABLE

1шт.
