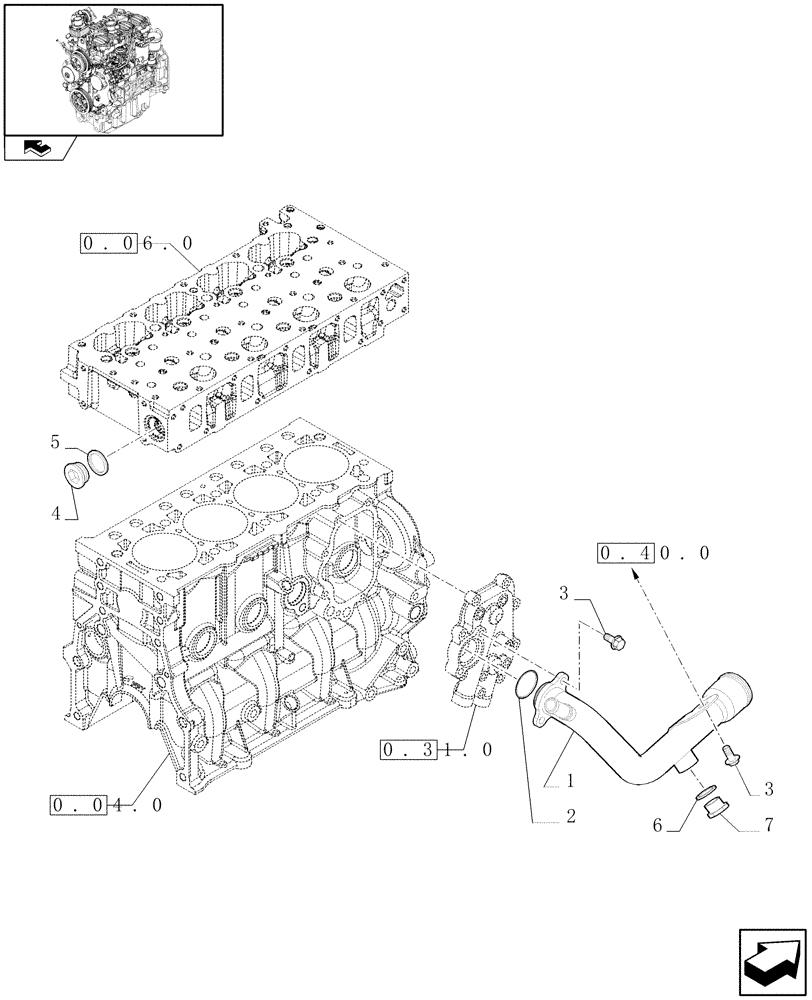

Запчасти Case IH FARMALL 75N (0.32.3) - PIPING - ENGINE COOLING SYSTEM (01) - ENGINE

1

504303868

PIPE

ASSY

1шт.

2

17289081

O-RING,31.34mm ID x 3.53mm

D = 31.34 x 3.53

1шт.

3

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.25 x 18

3шт.

4

16993711

PLUG,M35 x 1.5

M35 x 1.5

1шт.

5

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

6

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

D = 18 x 22 mm, Thk=1.5 mm

1шт.

7

2852496

PLUG,M18 x 1.5

M18 x 1.5

1шт.
