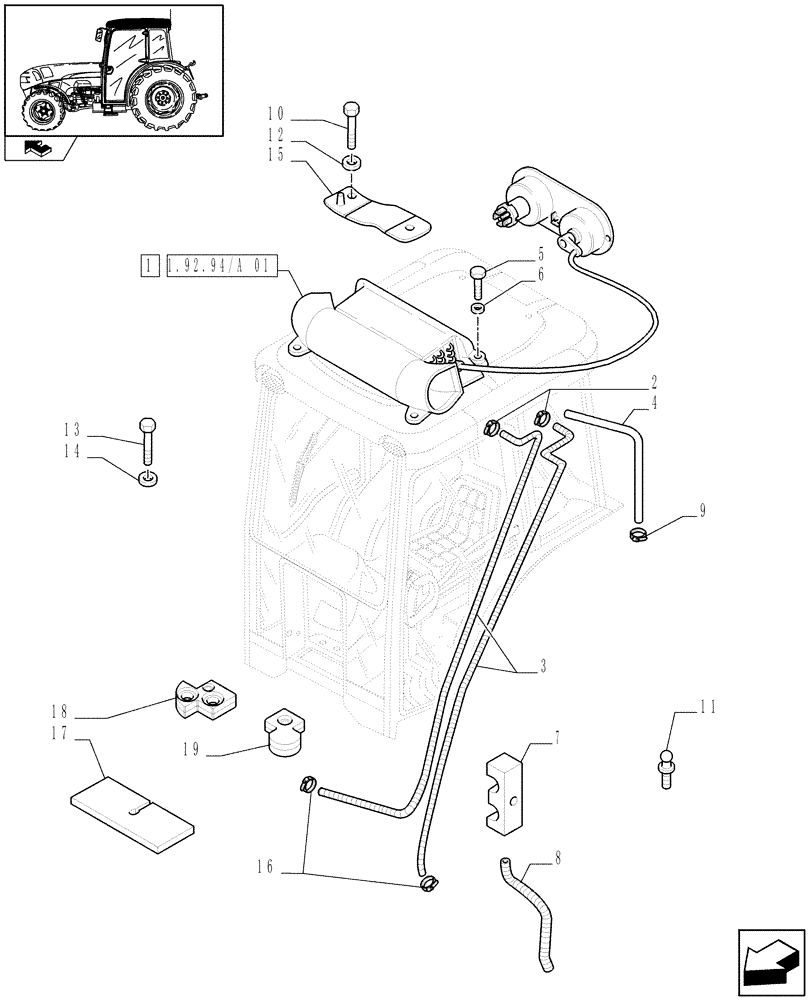

Запчасти Case IH FARMALL 75N (1.92.94[03]) - CAB - HEATING SYSTEM (10) - OPERATORS PLATFORM/CAB

1

5192078

HEATER

ASSY

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

2шт.

3

87720511

HEATER HOSE

1шт.

With White Band

1шт.

3

87720510

HEATER HOSE

1шт.

4

82849357

HOSE,10mm ID x 5000mm L

1шт.

5

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

6

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

D=8

4шт.

7

87571442

BRACKET

1шт.

8

87746334

FLEXIBLE HOSE

100MM, 19 x 24

4шт.

9

13423377

COLLAR,13.6mm - 15.1mm

D=15-13

2шт.

10

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

1шт.

11

15152011

BALL STUD

BALL PIN

10шт.

12

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

13

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

87474940

BRACKET

1шт.

16

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

17

84280657

COVER

1шт.

18

84278954

COVER

RH, Start Serial: D6626

1шт.

19

84278956

COVER

LH, Start Serial: D6626

1шт.
