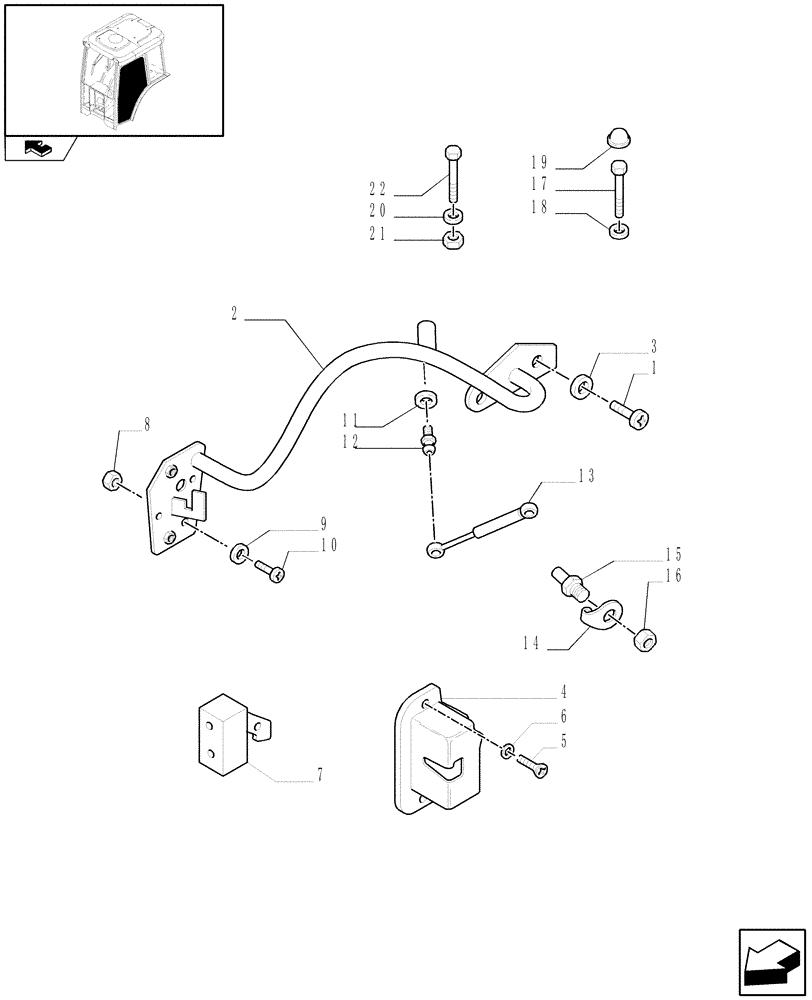

Запчасти Case IH FARMALL 75N (1.92.92[03]) - CAB DOORS (10) - OPERATORS PLATFORM/CAB

1

87352614

SCREW,Sl Pan Hd, M8 x 15mm, Cl 10.9

4шт.

2

87353602

HANDLE

RH

1шт.

2

87353608

HANDLE

LH

1шт.

3

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

4шт.

4

44910374

SHIELD

RH, Inner

1шт.

4

44910375

GUARD

LH, Inner

1шт.

5

5182270

BLEED SCREW,M6 x 10mm, Cl 5.8

M6 x 10

6шт.

6

12648278

WASHER,6.15mm ID x 10mm OD x 1mm Thk

6шт.

7

44910472

LOCK

RH

1шт.

7

44910473

LOCK

LH

1шт.

8

15896211

NUT,M6, Cl 8

3шт.

9

12648221

WASHER,6.15mm ID x 10mm OD x 1mm Thk

3шт.

10

14441724

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

2шт.

11

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

12

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

12

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.

13

87352613

GAS STRUT,285mm Extended, 190mm Compressed

2шт.

14

82019370

COVER

2шт.

15

87572559

LATCH

2шт.

16

83994378

NUT,M12 x 1

2шт.

17

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

18

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

19

15811487

CAP,13mm x 8.5mm

8шт.

20

12624904

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

4шт.

21

15896211

NUT,M6, Cl 8

3шт.

22

14441724

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

2шт.
