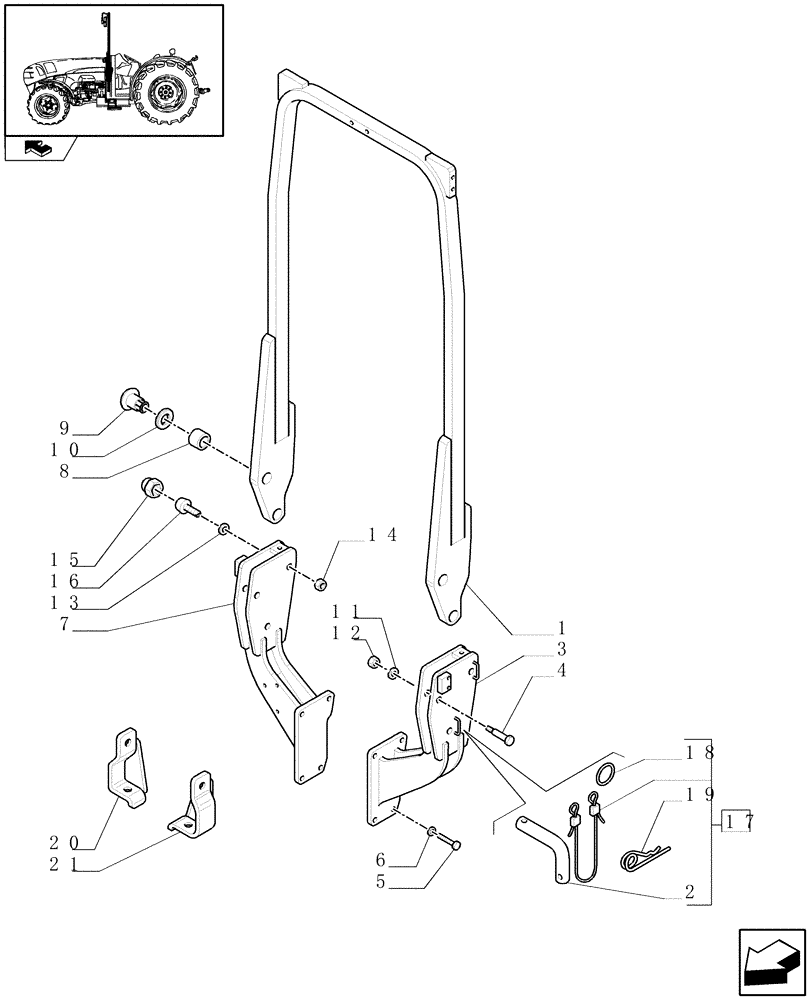

Запчасти Case IH FARMALL 75N (1.92.89/02) - MID-MOUNTED SEMI-FOLDABLE ROPS (VAR.332876-333876 / 743537) (10) - OPERATORS PLATFORM/CAB

1

87346599

U-FRAME

1шт.

2

47125411

PIN,18mm OD x 116mm L

2шт.

3

87346603

SUPPORT

LH

1шт.

4

87382356

STEP BOLT,Hex, M14 x 1.5 - M18 x 87mm, Cl 10.9

2шт.

5

15215731

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9, Full Thd

8шт.

6

11198674

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 3.2mm Thk

8шт.

7

87346604

SUPPORT

RH

1шт.

8

87346595

BUSHING,24.8mm ID x 34.5mm OD x 26mm L

4шт.

9

87346594

BUSHING,18.3mm ID x 50mm OD x 31.7mm L

4шт.

10

87382766

BUSHING,20.60mm ID x 45mm OD x 11.50mm, Plastic

4шт.

11

14496804

WASHER,15mm ID x 28mm OD x 2.5mm Thk

2шт.

12

13598221

NUT,M14 x 1.5

2шт.

13

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

14

12164710

NUT,Hex, M10 x 1.25, Cl 8

SPARE PART NUT

4шт.

15

5126232

COVER

4шт.

16

87382319

PAD

4шт.

17

87382359

PIN,18mm OD x 210mm L

ASSY

2шт.

18

44901192

SNAP RING,25mm ID

2шт.

19

44901190

COTTER PIN,6.3mm x 77.6mm L

2шт.

20

84136615

BRACKET

LH

1шт.

21

84136617

BRACKET

RH

1шт.
