(1.92.87/10) - REAR MUDG. IN HIGH POSITION WITH PARTIALLY WRAP AROUND TYPE EXTEN. - EXTENSIONS (VAR.336870-339870)

Запчасти Case IH FARMALL 75N (1.92.87/10) - REAR MUDG. IN HIGH POSITION WITH PARTIALLY WRAP AROUND TYPE EXTEN. - EXTENSIONS (VAR.336870-339870) (10) - OPERATORS PLATFORM/CAB

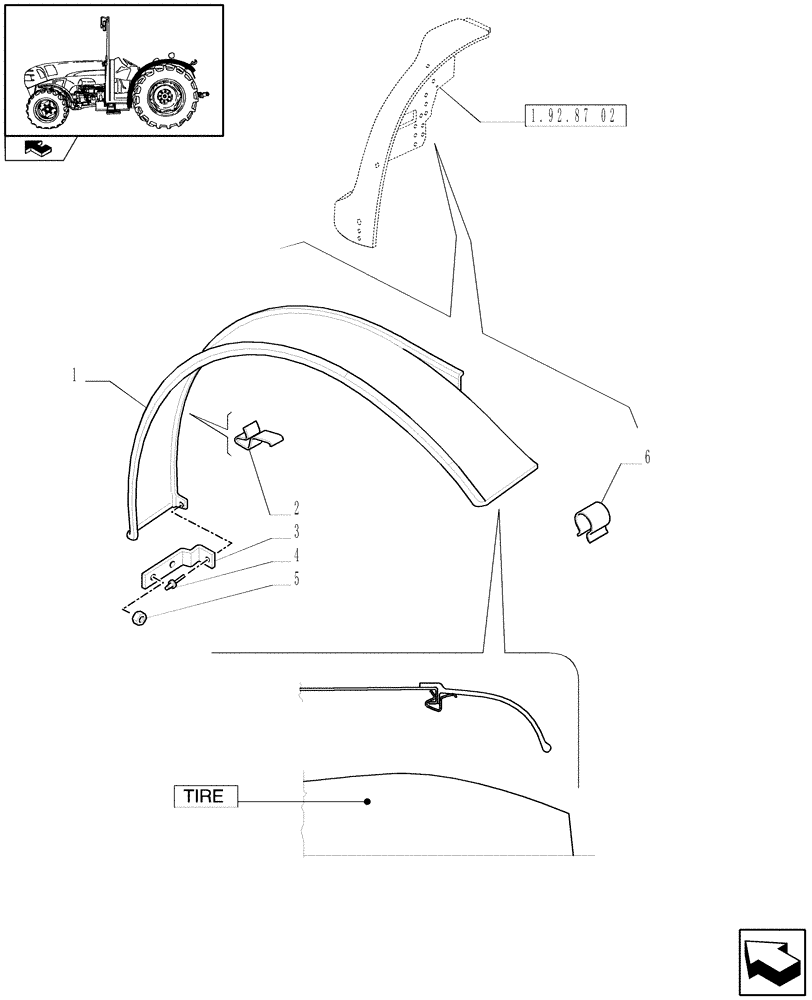

Схема запчастей Case IH FARMALL 75N - (1.92.87/10) - REAR MUDG. IN HIGH POSITION WITH PARTIALLY WRAP AROUND TYPE EXTEN. - EXTENSIONS (VAR.336870-339870) (10) - OPERATORS PLATFORM/CAB
4
6
3
2
5
1
1.92.87 02
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188508

FENDER

RH

1шт.

1

5188696

FENDER

LH

1шт.

2

87636427

SPRING

14шт.

3

5189533

BRACKET

2шт.

4

5186642

RIVET,Pop, 4.85mm OD x 14.5mm L

6шт.

5

16104414

LOCK NUT,M8 x 1.25

4шт.

6

82010838

SPRING CLIP,0.5mm Thk

6шт.

Выбрано товаров: 7
