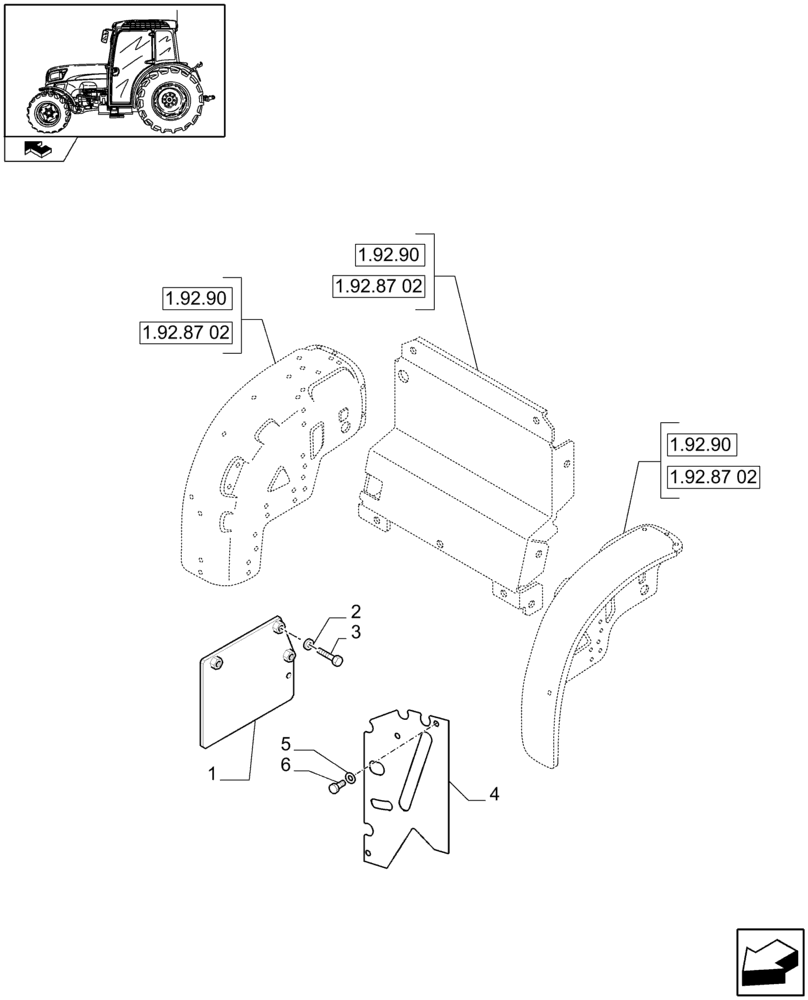

Запчасти Case IH FARMALL 75N (1.92.87/06) - POWER SHUTTLE - MUDGUARDS AND FOOTBOARDS (VAR.330275-331275 / 743510; VAR.330278-332278 / 743509) (10) - OPERATORS PLATFORM/CAB

1

5190973

COVER

1шт.

2

11198574

BELLEVILLE WASHER,Belleville, M10.5

3шт.

3

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

4

84498179

COVER

, Serial Range: -C7282

1шт.

4

47389797

COVER

, Start Serial: D7282

1шт.

5

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

, Serial Range: -C7282

3шт.

5

16100821

NUT,M8, Cl 10

, Start Serial: D7282

3шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

, Serial Range: -C7282

3шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

, Start Serial: D7282

3шт.
