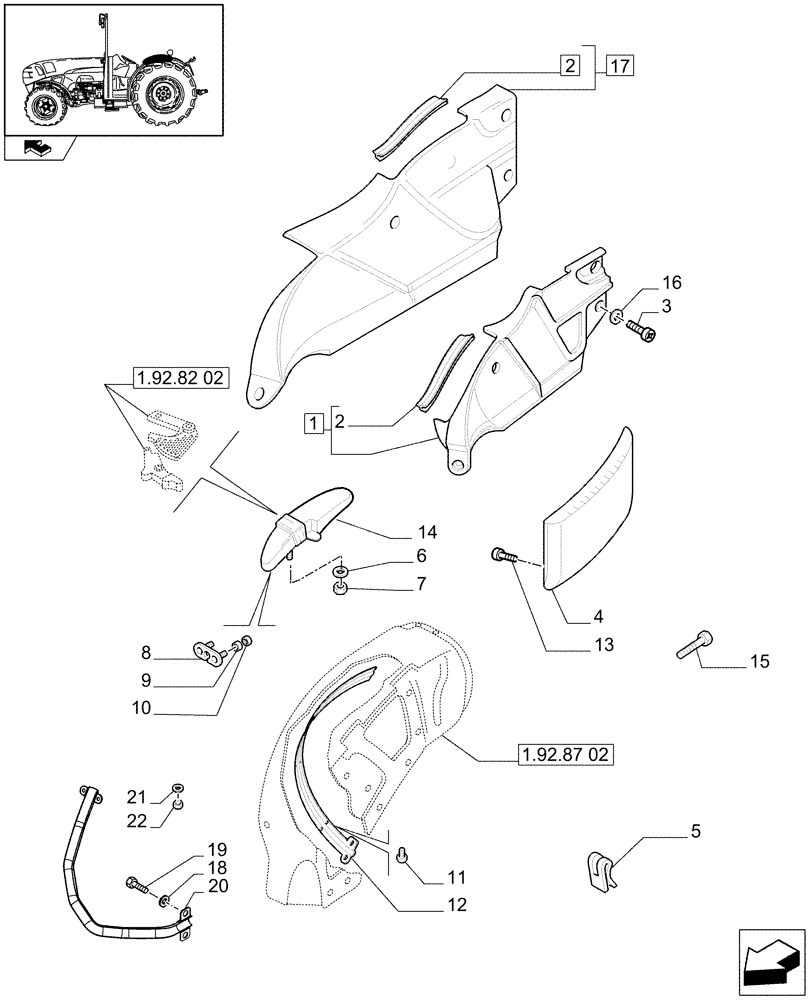

Запчасти Case IH FARMALL 75N (1.92.87[03]) - COVERINGS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5190243

GUARD

1шт.

2

44914718

GASKET

L=322MM, Cut Length

1шт.

3

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

4шт.

4

5189664

SECTOR

TOOTHED SECTOR

1шт.

5

11064074

RETAINER,8mm ID

D=8

1шт.

6

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

12574221

NUT,M6 x 1, Cl 10

3шт.

8

5183610

COVER PLATE

1шт.

9

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

2шт.

10

86625075

NUT,M4 x 0.7, Cl 8

2шт.

11

5183681

SCREW,Cheese, M6 x 16mm

M6 x 16, Serial Range: -C7235

2шт.

12

5187575

GUARD

, Serial Range: -C7235

1шт.

13

15687807

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 9.50mm

2шт.

14

47125536

COVER

1шт.

15

14082410

BOLT,Weld, M4 x 16mm

M4

2шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

17

5190244

GUARD

1шт.

With 3 Rear Remotes for MDC, VAR.330390-331390-330391-331391-332391-333391-334391-335391

1шт.

18

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

, Start Serial: D7235

2шт.

19

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

, Start Serial: D7235

2шт.

20

84481992

PROTECTION STRIP

, Start Serial: D7235

1шт.

21

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

, Start Serial: D7235

6шт.

22

15896224

NUT,Hex, M6

, Start Serial: D7235

6шт.
