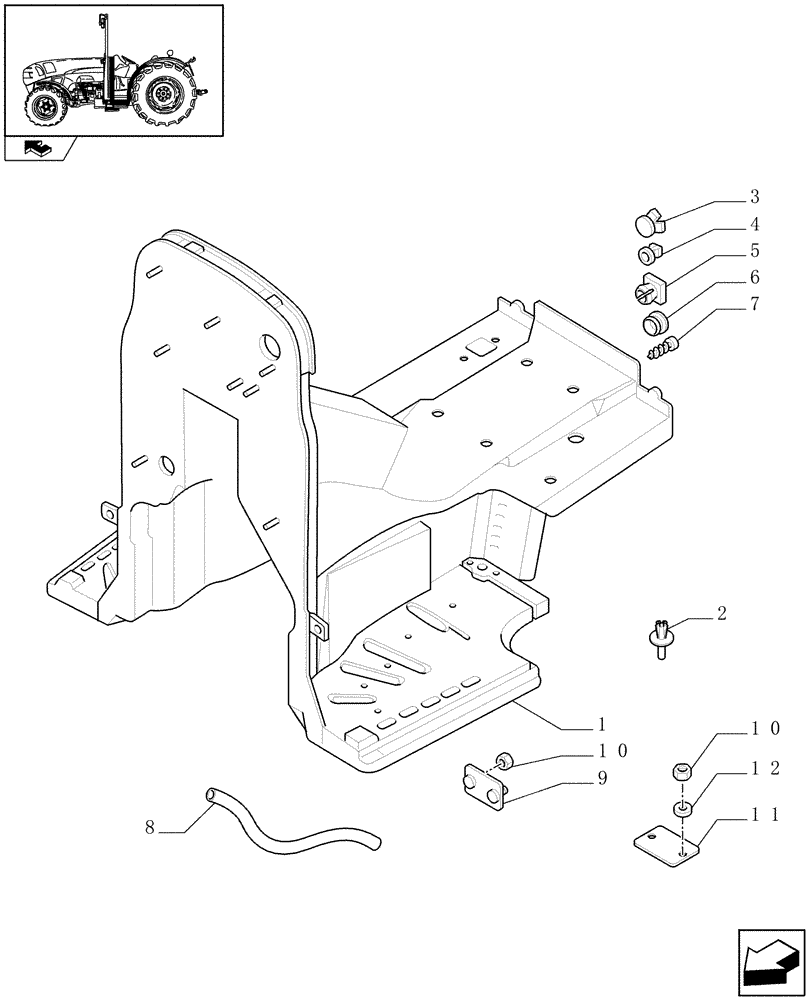

Запчасти Case IH FARMALL 75N (1.92.87[01]) - COMPLETE PLATFORM AND RELATIVE PARTS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

87618855

PLATFORM

, Serial Range: -C7426

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

1

84471741

PLATFORM

, Start Serial: D7426

1шт.

65V Model, 75V Model, 85V Model, 95V Model

1шт.

1

87618854

PLATFORM

, Serial Range: -C7426

1шт.

75N Model, 85N Model, 95N Model

1шт.

1

84471803

PLATFORM

, Start Serial: D7426

1шт.

75N Model, 85N Model, 95N Model

1шт.

2

5187129

BUTTON

4шт.

3

5112608

PLUG,9mm, Black

D=9

6шт.

4

5155613

PLUG,14mm , Black

D=14

28шт.

5

5107721

PLUG,7.7mm, Black

2шт.

6

5120060

PLUG,30mm, Black

M39

2шт.

7

14592587

BUTTON,Button, M6.50 x 3.50mm

6.35 x 3.5

4шт.

8

85805383

CABLE TIE

CABLE STRAP

4шт.

9

5188636

BRACKET

, Serial Range: -C6337

1шт.

10

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

11

87486301

PLATE

, Start Serial: D6337

1шт.

12

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.
