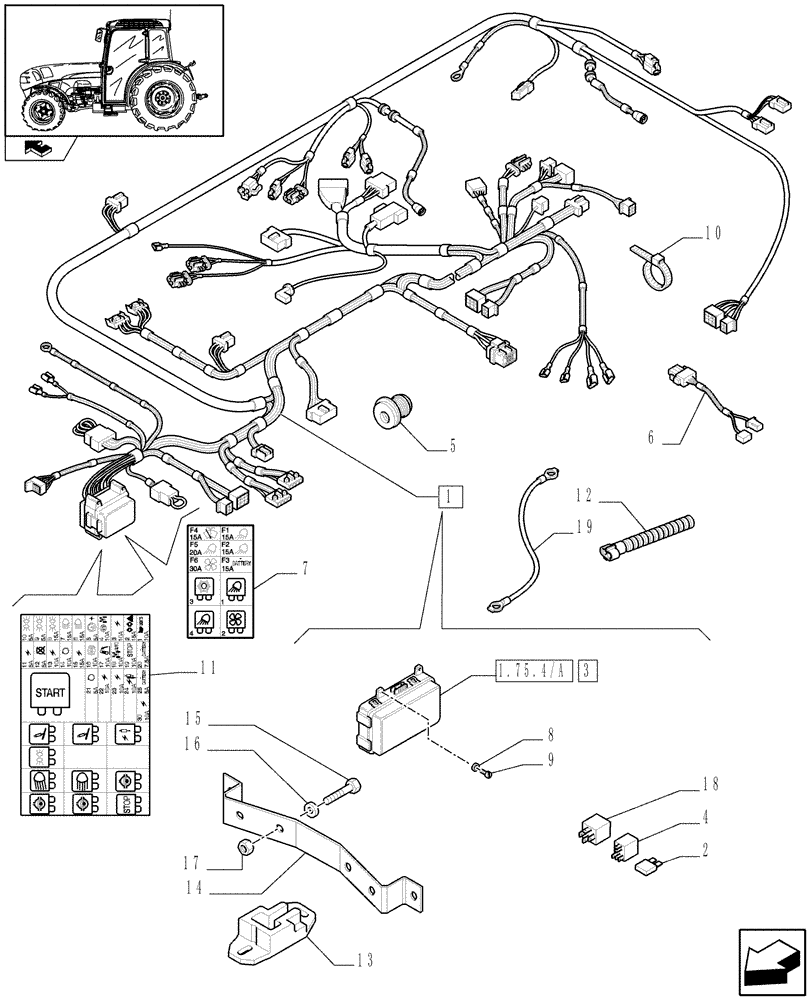

Запчасти Case IH FARMALL 75N (1.92.754[01]) - 4WD MAIN HARNESS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87625169

ELECTRIC CABLE

Main, Serial Range: -C6512

1шт.

1

84283011

ELECTRIC CABLE

Main, Serial Range: D6512-C7061

1шт.

1

84481806

WIRE HARNESS

Main, Start Serial: D7061

1шт.

2

10395890

FUSE,5A, Mini, Beige

5A

1шт.

2

87522595

FUSE,7.5A, Mini, Brown

7.5

1шт.

2

87522597

FUSE,10A, Mini, Red

10A

1шт.

2

87524877

FUSE,15A, Mini, Blue

15A

1шт.

2

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

2

10401290

FUSE,25 amp Mini

25A

1шт.

2

10402190

FUSE,30A, Mini

30A

1шт.

3

5198692

FUSE HOLDER

1шт.

4

47127781

RELAY,12V, 20A, Micro, N.O.

NO, 20A

1шт.

4

82023238

RELAY,12V, 20A

NC, 20A

1шт.

5

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

6

87319903

ELECTRIC CABLE

1шт.

7

87705790

DECAL

1шт.

8

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

9

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.

10

85805383

CABLE TIE

CABLE STRAP

28шт.

11

87705738

DECAL

1шт.

12

87345428

TERMINAL CONNECTOR,120Ohm/0.5W, 42 Pins

CAN Bus Terminator

1шт.

13

87543128

HOSE CLIP

2шт.

14

84146231

BRACKET

1шт.

15

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

16

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

4шт.

17

10725011

THIN NUT,Thin, M5 x .8, Cl 04

4шт.

18

83989947

RELAY,70A

70A

1шт.

Electro-Hydraulic 4WD Extension Harness

1шт.

19

87309787

ELECTRIC CABLE

Ground

1шт.
