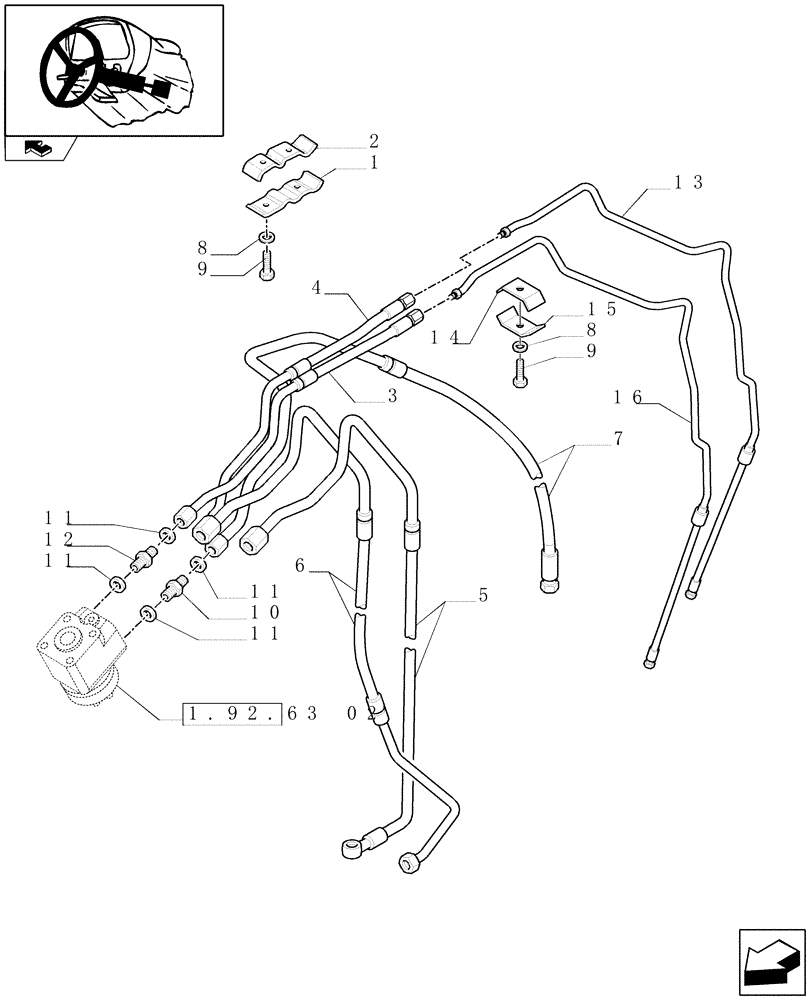

Запчасти Case IH FARMALL 75N (1.92.63[03A]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB

1

87558463

RETAINER COLLAR,2x6mm ID x 4mm Thk

1шт.

2

87558474

RETAINER COLLAR,2x6.5mm ID

1шт.

3

84332636

RIGID TUBE

LH

1шт.

4

84332637

RIGID TUBE

RH

1шт.

5

87587338

RIGID TUBE,16 mm OD

1шт.

For Hydraulic Transmission

1шт.

6

84188829

HYD TUBE,16 mm OD

1шт.

For Mechanical Transmission

1шт.

7

87695566

RIGID TUBE,12.7 mm ID x 385, 210.9 mm L

1шт.

To HPL Pump

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

9

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

3шт.

10

5158807

HYD CONNECTOR

7/8"-14 x 1/2" Gas

2шт.

11

5170555

WASHER

1/2"

4шт.

12

5174421

HYD CONNECTOR

3/4"-16 x 1/2" Gas

2шт.

13

84191927

RIGID TUBE

RH

1шт.

To Steering Cylinder

1шт.

14

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

Front

1шт.

15

5193550

CLAMP,6.5mm ID

Rear

3шт.

16

84191930

RIGID TUBE

LH

1шт.

To Steering Cylinder

1шт.
