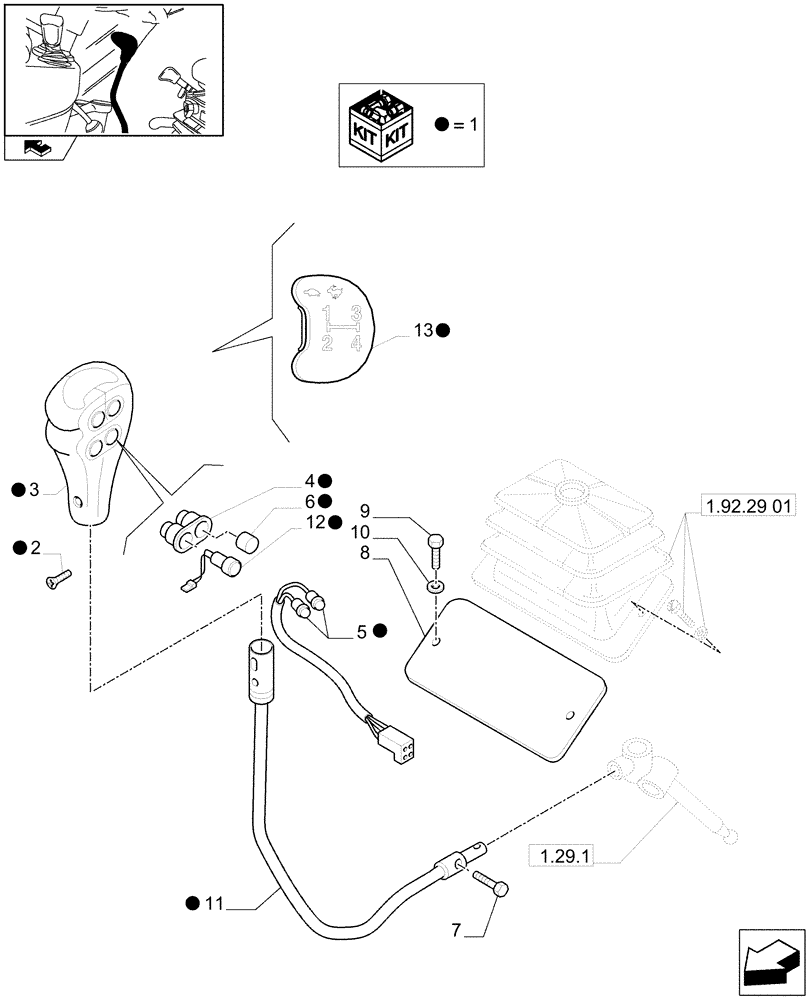

Запчасти Case IH FARMALL 75N (1.92.29/02[01]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION - CONTROLS - L/CAB - C6921 (VAR.330275-331275 / 743510) (10) - OPERATORS PLATFORM/CAB

1

84170026

LEVER

1шт.

2

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

2шт.

3

47056380

KNOB

1шт.

4

47056383

SEAT/SLOT

1шт.

5

87746349

CABLE

2шт.

6

47056407

PLUG

1шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

8

5195262

PLATE

1шт.

9

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

5192888

LEVER

1шт.

12

47136202

SWITCH

HI

1шт.

12

47136203

SWITCH

LO

1шт.

13

47056639

CUP COVER

1шт.
