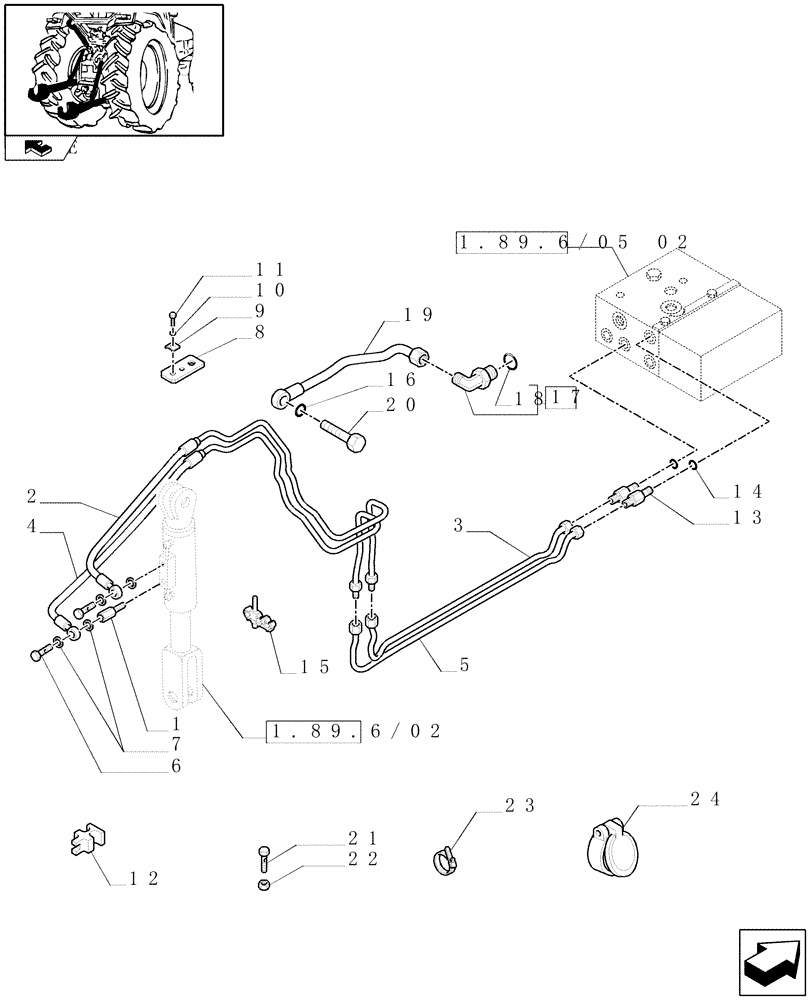

Запчасти Case IH FARMALL 75N (1.89.6/05[01]) - HYDRAULIC LIFT ROD FOR MDC AND TRAILER BRAKE VALVE - TIE ROD, PIPES AND CONNECTIONS (VAR.330966 / 743536) (09) - IMPLEMENT LIFT

1

5179492

PROP,3/8"

1шт.

2

87624485

RIGID TUBE,8 mm OD

, Serial Range: -C6794

1шт.

2

84317272

RIGID TUBE

, Start Serial: D6794

1шт.

3

87624481

RIGID TUBE,8 mm OD

1шт.

4

87624488

RIGID TUBE,8 mm OD

, Serial Range: -C6794

1шт.

4

84317273

HYD TUBE

, Start Serial: D6794

1шт.

5

87624487

RIGID TUBE,8 mm OD

1шт.

6

5179496

BANJO BOLT,Hex, M9 x 39mm

2шт.

7

11270460

SEALING WASHER,17.2mm ID x 20.9mm OD x 1.5mm Thk

, Serial Range: -C6794

5шт.

7

84185636

SEAL,14.76mm ID x 23.8mm OD x 3mm Thk

, Start Serial: D6794

5шт.

8

87731822

BRACKET

1шт.

9

5161207

RETAINER COLLAR,7mm ID x 23mm L

3шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

12

87479465

SPACER,4-R4, 25mm L x 13mm L

2шт.

13

5158810

HYD CONNECTOR,M12 x 1.5

2шт.

14

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

15

14504387

CLIP

3/8", Black

2шт.

16

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

1шт.

17

87616375

HYD CONNECTOR

1шт.

18

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

19

87624472

RIGID TUBE,18 mm OD

1шт.

20

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

21

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

22

15896214

NUT,M6, Cl 8

1шт.

23

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

1шт.

24

47123643

CAP

, Serial Range: -C6794

2шт.
