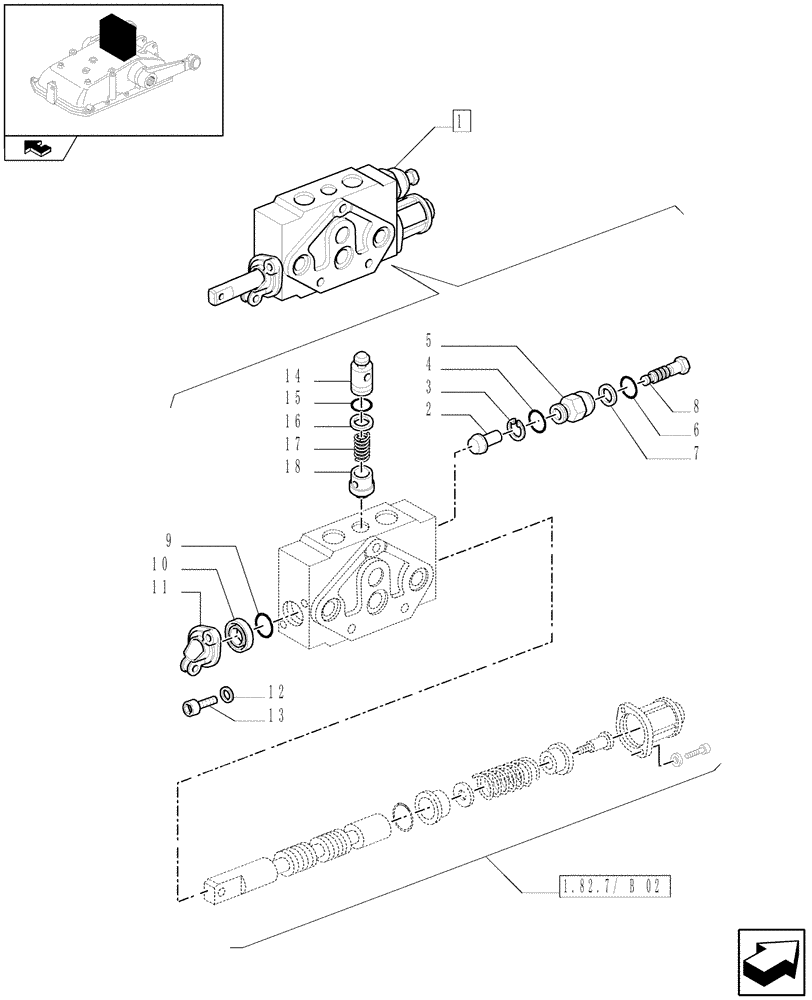

Запчасти Case IH FARMALL 75N (1.82.7/ B[01]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR - BREAKDOWN (07) - HYDRAULIC SYSTEM

1

87396848

CONTROL VALVE

ASSY

1шт.

2

5136347

PIN,3.8mm OD x 15mm L

1шт.

3

87016950

SNAP RING,M7, Ext

1шт.

4

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

5

5136346

BODY,7/8" - 14

1шт.

6

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

7

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

8

5136348

PIN,10mm OD x 37mm L

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

10

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

11

5116887

SUPPORT

1шт.

12

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

13

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

14

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

15

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

16

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

17

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

18

5116886

PIN,9.4mm OD x 10.5mm L

1шт.
