Запчасти Case IH FARMALL 75N (1.82.7/07[01]) - 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - VALVE AND FLANGE (VAR.336391 / 743526) (07) - HYDRAULIC SYSTEM

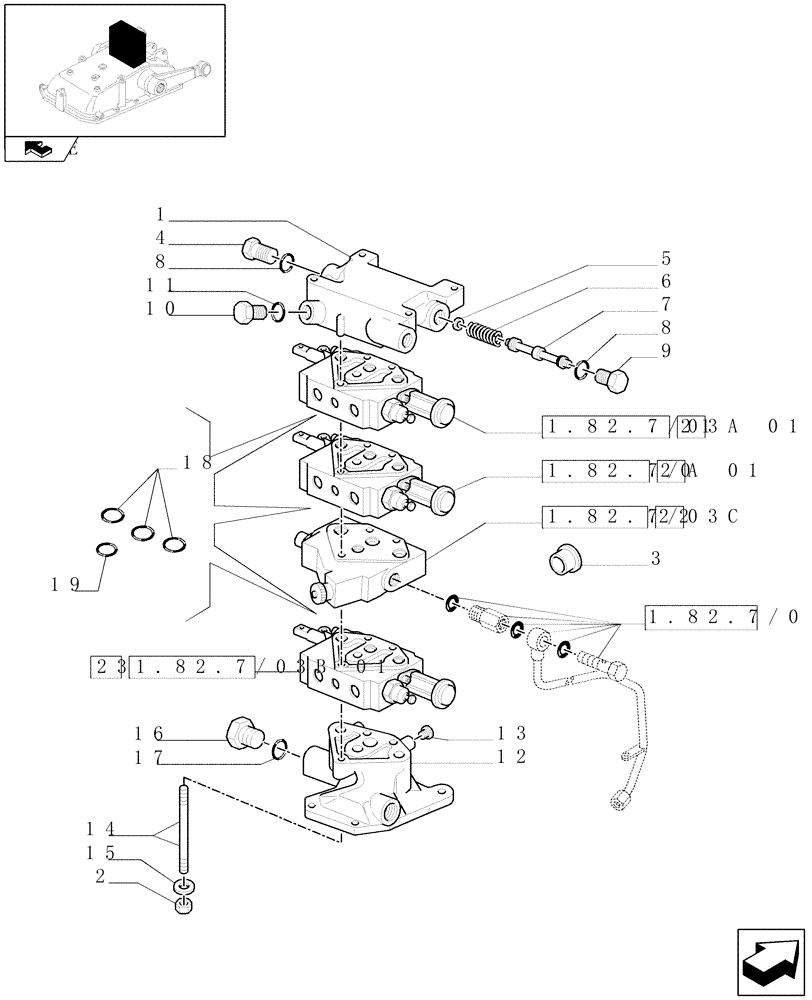

Схема запчастей Case IH FARMALL 75N - (1.82.7/07[01]) - 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - VALVE AND FLANGE (VAR.336391 / 743526) (07) - HYDRAULIC SYSTEM
11
20
14
2
7
9
1.82.7/a 01
1.82.7/03c
1.82.7/03a 01
1.82.7/03b 01
home
1.82.7/07 03
21
5
13
22
16
17
19
4
23
15
6
3
8
1
12
10
18
8

Артикул

Название

Примечание

Количество

1

87396843

CONTROL VALVE

Incl. 4, 11

1шт.

2

5116857

NUT,3/8" - 24

3шт.

3

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

2шт.

4

5173857

PLUG,Hex, M27 x 2

1шт.

5

5167122

VALVE

1шт.

6

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

7

83999793

HYDRAULIC VALVE

1шт.

8

14438185

O-RING,24mm ID x 3mm

1шт.

9

5167123

PLUG,7/16" - 20

1шт.

10

83957506

PLUG,3/4"

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

5176480

FLANGE

1шт.

13

10269601

PLUG,M16 x 1.5

M16

1шт.

14

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

15

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

16

10305911

PLUG,M22 x 1.5 x 27

1шт.

17

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

1шт.

18

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

15шт.

19

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

5шт.

20

87396877

CONTROL VALVE

1шт.

S/D W/Autom.Kick-Out & Float

1шт.

21

87396859

CONTROL VALVE

1шт.

Simple Double Effect Distributor with Float

1шт.

22

87397107

CONTROL VALVE

1шт.

23

87396881

CONTROL VALVE

1шт.

S/D W/Autom.Kick-Out

1шт.

Выбрано товаров: 26
