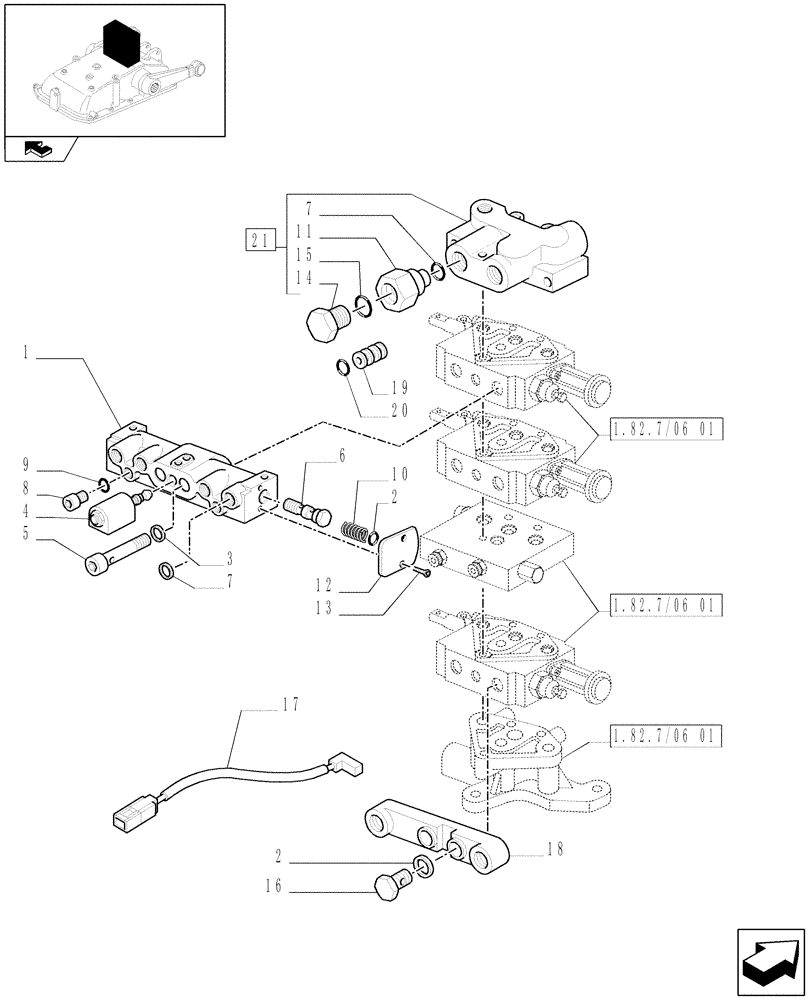

Запчасти Case IH FARMALL 75N (1.82.7/06[03]) - 3 REAR REMOTE VALVES WITH DOUBLE FLOW DIVIDER - DIVIDER (VAR.331391-334391 / 743527) (07) - HYDRAULIC SYSTEM

1

47131020

BODY

Upper, Incl. 4-6,8,9,10,12,13

1шт.

1

47131021

BODY

Lower, Incl. 4-6,8,9,10,12,13

1шт.

2

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

3

47131201

GASKET KIT

15 x 2

4шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

3

47126244

GASKET KIT

13.59 x 2.7

2шт.

4

5176119

ELECTRO-VALVE,3W - 2p with diode

2шт.

5

47131017

BANJO BOLT,M18 x 1.5 x 67mm

4шт.

6

47125557

ROD,16mm OD x 73mm L

Incl. 3

4шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

8

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

4шт.

9

14437685

O-RING,9.30mm ID x 2.40mm

4шт.

10

47125559

SPRING,Compression, 11.5mm OD x 37mm L

4шт.

11

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

12

47125558

COVER

4шт.

13

14440624

SET SCREW,Hex Soc, M5 x 12mm, Flat Pt

4шт.

14

83957506

PLUG,3/4"

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

5168481

BANJO BOLT,M18 x 1.5 x 38mm

M18

2шт.

17

5190544

ELECTRIC CABLE

Blue, 2nd Distr.

1шт.

17

5190545

ELECTRIC CABLE

Azuregreen, 3rd Distr.

1шт.

18

5185533

HYD CONNECTOR

1шт.

19

5190887

HYD CONNECTOR,19.5mm L

4шт.

20

5190853

O-RING,0.103" Thk x 0.206" ID, -107, Cl 5, 70 Duro

8шт.

21

87396829

CONTROL VALVE

ASSY

1шт.
