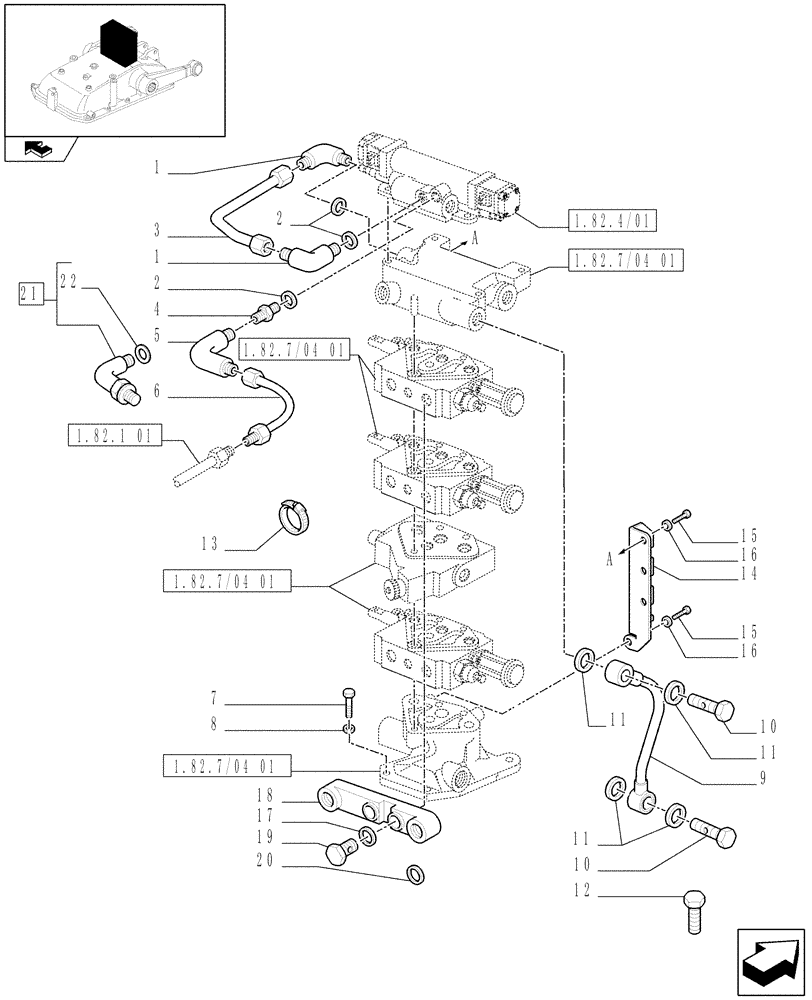

Запчасти Case IH FARMALL 75N (1.82.7/04[03]) - 3 REMOTE VALVES FOR ELECTRONIC LIFTER W/HYD. DIVIDER FOR EDC - PIPES (VAR.335390 / 743525) (07) - HYDRAULIC SYSTEM

1

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4" Tube

2шт.

2

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

, Serial Range: -C6963

3шт.

3

5174040

RIGID TUBE

Load Sensor

1шт.

4

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

, Serial Range: -C6963

1шт.

5

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

, Serial Range: -C6963

1шт.

6

47131635

RIGID TUBE

1шт.

7

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

5188501

RIGID TUBE

Unload

1шт.

10

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M18

2шт.

11

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

12

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

13

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

14

5179944

CONSOLE

1шт.

15

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

17

14457480

O-RING,18.72mm ID x 2.62mm Thk , -116, Cl 5

6шт.

18

5185533

HYD CONNECTOR

3шт.

19

5168481

BANJO BOLT,M18 x 1.5 x 38mm

6шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

21

5166932

90 ELBOW,1/2-20 UNF, M12 x 1.5

, Start Serial: D6963

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

, Start Serial: D6963

1шт.
