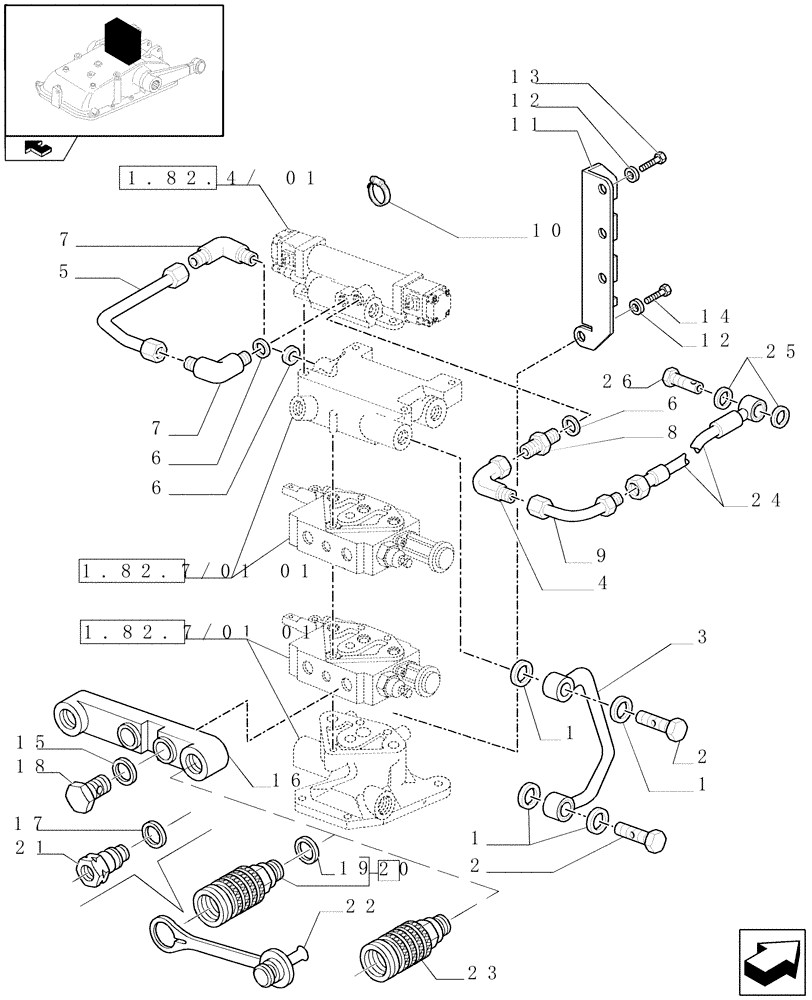

Запчасти Case IH FARMALL 75N (1.82.7/01[03]) - 2 REAR REMOTES FOR EDC - BRACKETS, UNION AND QUICK COUPLING - W/CAB (07) - HYDRAULIC SYSTEM

1

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

3

5174038

RIGID TUBE

1шт.

4

86513593

90 ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1шт.

5

5174040

RIGID TUBE

1шт.

6

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

7

216773

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

2шт.

8

82002503

HYD CONNECTOR,1/2-20 UNF-2A, 7/16-20 UNF-2A, 31.2mm L

1шт.

9

47131635

RIGID TUBE

1шт.

10

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

11

5178435

BRACKET

1шт.

12

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

13

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

14

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

15

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

4шт.

16

5185533

HYD CONNECTOR

2шт.

17

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

18

5168481

BANJO BOLT,M18 x 1.5 x 38mm

4шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

20

5179557

COUPLING, QUICK, FEM

include p/n 1534623C1

1шт.

1534623C1

SEAL KIT

1шт.

21

5101741

QUICK MALE COUPLING

1шт.

22

5179576

PLUG,24mm, Green

Green

1шт.

22

5179577

PLUG,24mm, Blu

Blue

1шт.

22

5179578

PLUG,24mm, Brown

Brown

1шт.

For 3 Remote Valves

1шт.

23

5179556

COUPLING, QUICK, FEM,Hex, M18 x 1.5 x 63.3mm L

M18 x 1.5, include p/n 1534623C1

1шт.

For 3 Remote Valves

1шт.

1534623C1

SEAL KIT

1шт.

24

47133401

FLEXIBLE HOSE,6mm ID x 1110mm L

1шт.

With Electronic Lift, VAR.331832-332832

1шт.

25

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

2шт.

With Electronic Lift, VAR.331832-332832

1шт.

26

84196125

BANJO BOLT,Hex, M12 x 1.5

1шт.

With Electronic Lift, VAR.331832-332832

1шт.
