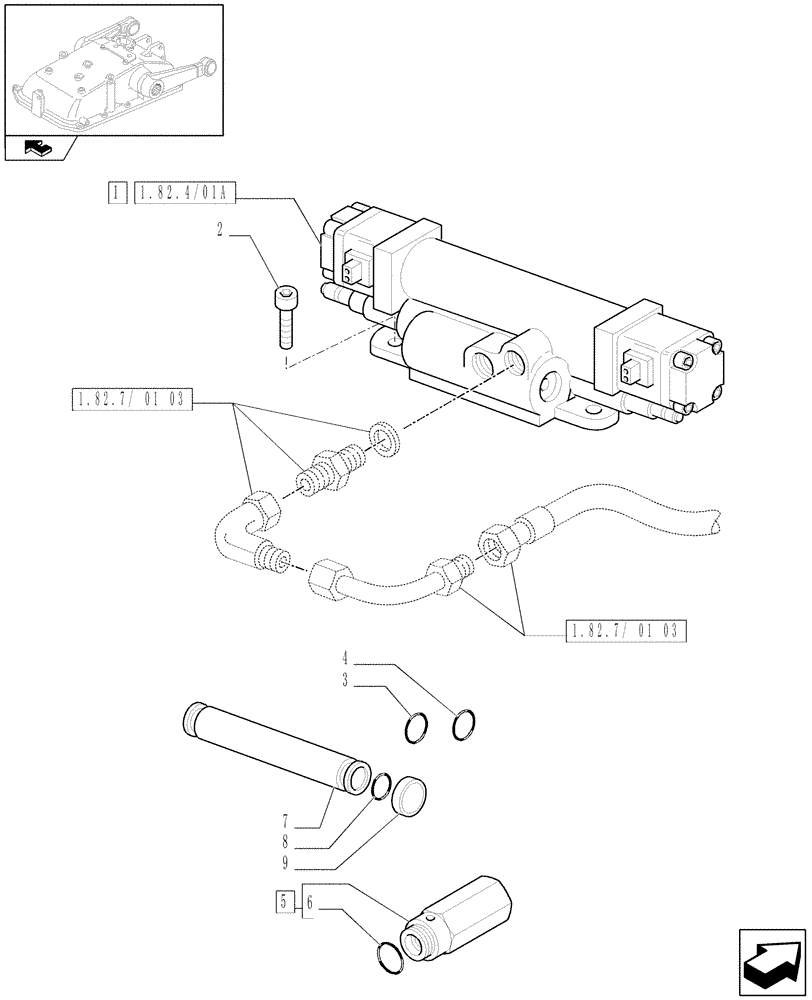

Запчасти Case IH FARMALL 75N (1.82.4/01) - ELECTRONIC LIFT - VALVE AND RELEVANT PARTS (VAR.331832-332832 / 743523) (07) - HYDRAULIC SYSTEM

1

82011395

HYDRAULIC VALVE

ASSY

1шт.

2

81864028

HEX SOC SCREW,7/16" - 14 x 1", Gr 8

Socket Hd, 7/16"-14 x 1"

4шт.

3

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

4

83949068

O-RING,0.103" Thk x 1.799" ID, -133, Cl 6, 90 Duro

1.812" ID x .103" Thk

1шт.

5

5117739

VALVE PRESSURE RELIE,M20 x 1.5

ASSY

1шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

(M17.12 ID x 2.62 Thk)

1шт.

7

5176630

PIPE,20mm ID x 105mm L

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

9

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

2шт.
