(1.82.1[04]) - DELIVERY PIPE TO STEERING MOTOR

Запчасти Case IH FARMALL 75N (1.82.1[04]) - DELIVERY PIPE TO STEERING MOTOR (07) - HYDRAULIC SYSTEM

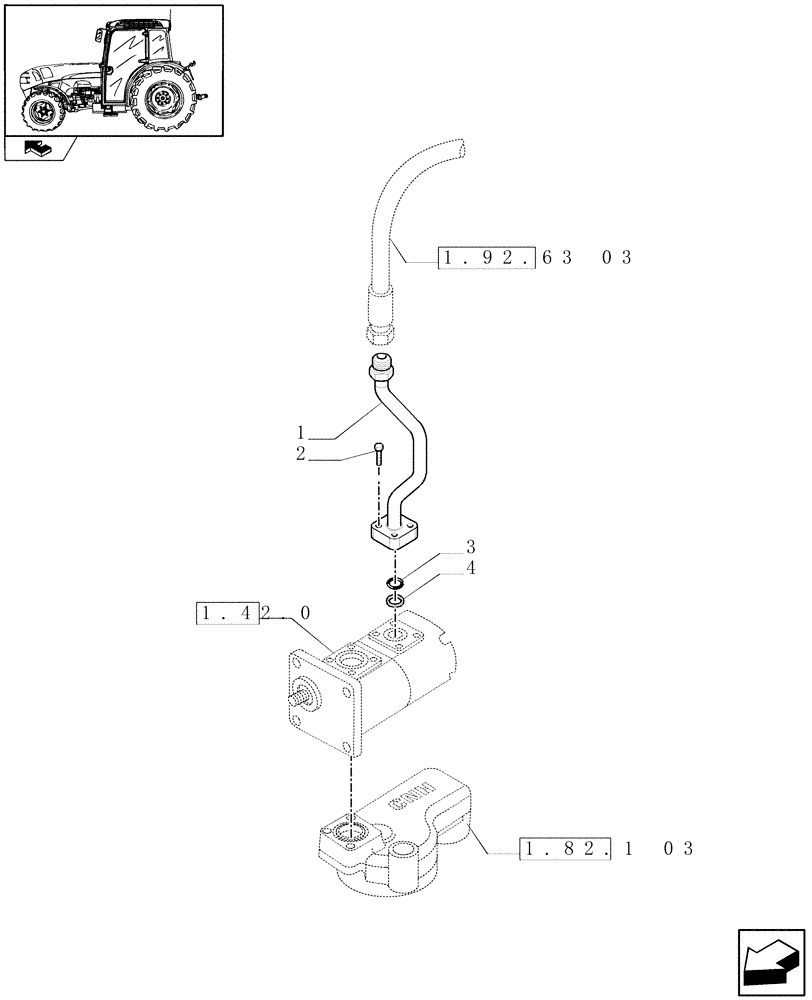

Схема запчастей Case IH FARMALL 75N - (1.82.1[04]) - DELIVERY PIPE TO STEERING MOTOR (07) - HYDRAULIC SYSTEM
4
1.42.0
home
1.82.1 03
1.92.63 03
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87695555

RIGID TUBE,16 mm DIA x 250 mm L

1шт.

To Steering Motor

1шт.

2

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

3шт.

3

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

4

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.
