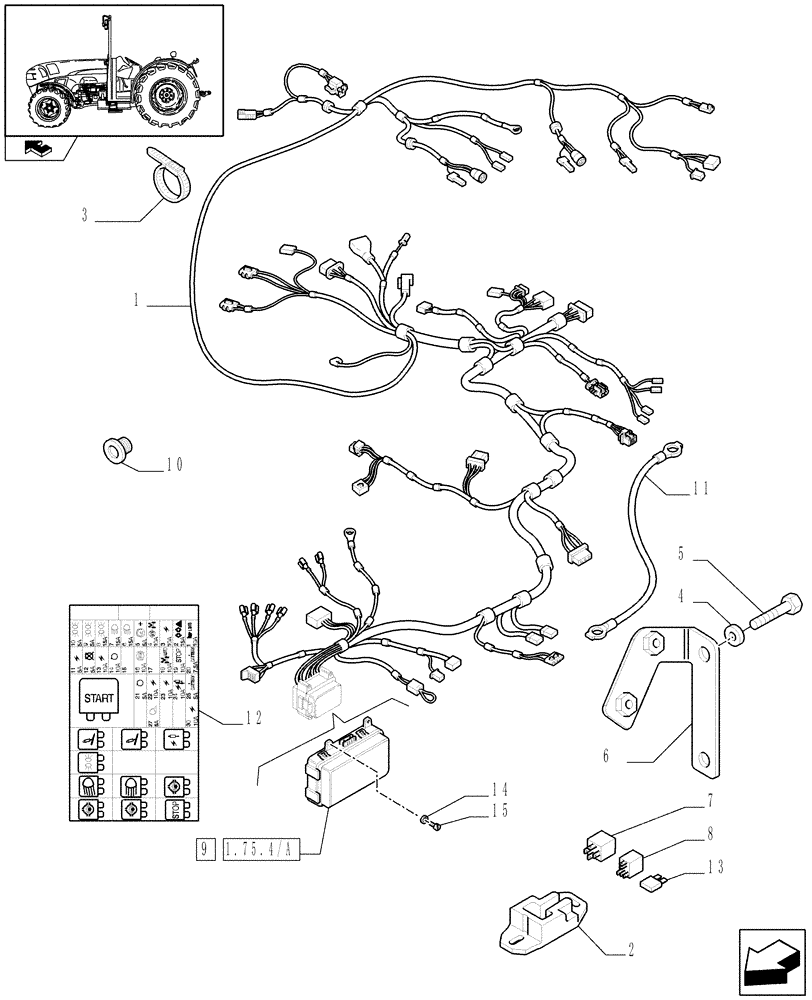

Запчасти Case IH FARMALL 75N (1.75.4/09) - MAIN HARNESS WITHOUT MECHANICAL BATTERY ISOLATOR - L/CAB (VAR.334308 / 743512; VAR.331308-332308-338308) (06) - ELECTRICAL SYSTEMS

1

84242516

ELECTRIC CABLE

Main, Serial Range: -C7061

1шт.

With Electro-Hydr. 4WD Engag. for MDC and Standard Front Axle, VAR.332308

1шт.

With Electro-Hydr. Engag. and Automatic 4WD and Diff. Lock for MDC and Standard Front Axle, VAR.334308

1шт.

1

84242502

ELECTRIC CABLE

Main, Serial Range: -C7061

1шт.

Less Electro-Hydr. Engag. (2WD) for Mech. Diff. Lock, VAR.338308

1шт.

1

84242513

ELECTRIC CABLE

Main, Serial Range: -C7061

1шт.

Less Electro-Hydr. Engag. (2WD) for Hydr. Diff. Lock, VAR.331308

1шт.

1

84481217

WIRE HARNESS

Main, Start Serial: D7061

1шт.

With Electro-Hydr. 4WD Engag. for MDC and Standard Front Axle, VAR.332308

1шт.

With Electro-Hydr. Engag. and Automatic 4WD and Diff. Lock for MDC and Standard Front Axle, VAR.334308

1шт.

1

84481173

WIRE HARNESS

Main, Start Serial: D7061

1шт.

Less Electro-Hydr. Engag. (2WD) for Mech. Diff. Lock, VAR.338308

1шт.

1

84481197

WIRE HARNESS

Main, Start Serial: D7061

1шт.

Less Electro-Hydr. Engag. (2WD) for Hydr. Diff. Lock, VAR.331308

1шт.

2

87543128

HOSE CLIP

1шт.

3

85805383

CABLE TIE

CABLE STRAP

28шт.

4

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

5

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

2шт.

6

84146213

BRACKET

1шт.

7

83989947

RELAY,70A

70A

1шт.

8

47127781

RELAY,12V, 20A, Micro, N.O.

NO, 20A

1шт.

8

47127782

RELAY,12V, 10A, Micro, N.C.

NC, 20A

1шт.

9

5198692

FUSE HOLDER

1шт.

10

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

11

87309787

ELECTRIC CABLE

Ground

1шт.

12

87705735

DECAL

1шт.

13

10395890

FUSE,5A, Mini, Beige

5A

1шт.

13

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

13

87522597

FUSE,10A, Mini, Red

10A

1шт.

13

87524877

FUSE,15A, Mini, Blue

15A

1шт.

13

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

13

10401290

FUSE,25 amp Mini

25A

1шт.

13

10402190

FUSE,30A, Mini

30A

1шт.

14

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

15

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

4шт.
