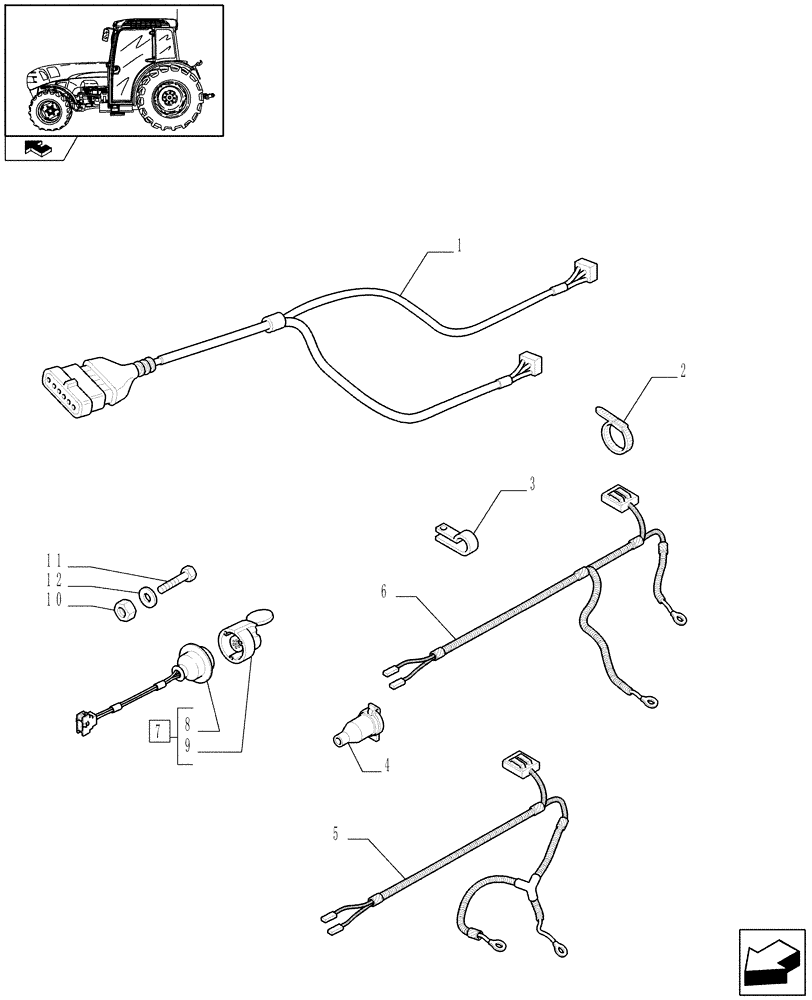

Запчасти Case IH FARMALL 75N (1.75.4[03A]) - AUXILIARY CABLES - D7061 (06) - ELECTRICAL SYSTEMS

1

84163725

ELECTRIC CABLE

, Serial Range: -C7067

1шт.

Front Head Lamps Harness

1шт.

1

84478263

HARNESS

, Start Serial: D7067

1шт.

Front Head Lamps Harness

1шт.

2

5143429

CABLE TIE,116mm L

1шт.

2

14560087

CABLE TIE,103mm, Black

CABLE STRAP

2шт.

3

10450190

CLAMP,10mm, Coat, 9mm Bolt Hole, P Type

1шт.

4

5170243

POWER SOCKET,25A

25A ISO

1шт.

5

84482185

WIRE HARNESS

L/CAB

1шт.

Socket Harness, 25A - ISO

1шт.

6

84482189

WIRE HARNESS

W/CAB

1шт.

Socket Harness, 25A - ISO

1шт.

7

5196941

ELECTRIC CABLE

1шт.

7 Pin ISO Trailer Connection, VAR.331745

1шт.

8

5188076

ELECTRIC CABLE

1шт.

7 Pin ISO Trailer Connection, VAR.331745

1шт.

9

5102156

MULTIPOLE CONNECTOR,Female, 7 Pole

1шт.

7 Pin ISO Trailer Connection, VAR.331745

1шт.

10

15896414

NUT,M5, Cl 8

3шт.

7 Pin ISO Trailer Connection, VAR.331745

1шт.

11

13274911

SCREW,Cross Pan Hd, M5 x 35mm

3шт.

7 Pin ISO Trailer Connection, VAR.331745

1шт.

12

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

3шт.

7 Pin ISO Trailer Connection, VAR.331745

1шт.
