(1.43.0/03[02]) - DYNAMIC FRONT FENDERS (310MM, 4WD) - FENDERS AND BRACKETS (VAR.335485 / 743533)

Запчасти Case IH FARMALL 75N (1.43.0/03[02]) - DYNAMIC FRONT FENDERS (310MM, 4WD) - FENDERS AND BRACKETS (VAR.335485 / 743533) (04) - FRONT AXLE & STEERING

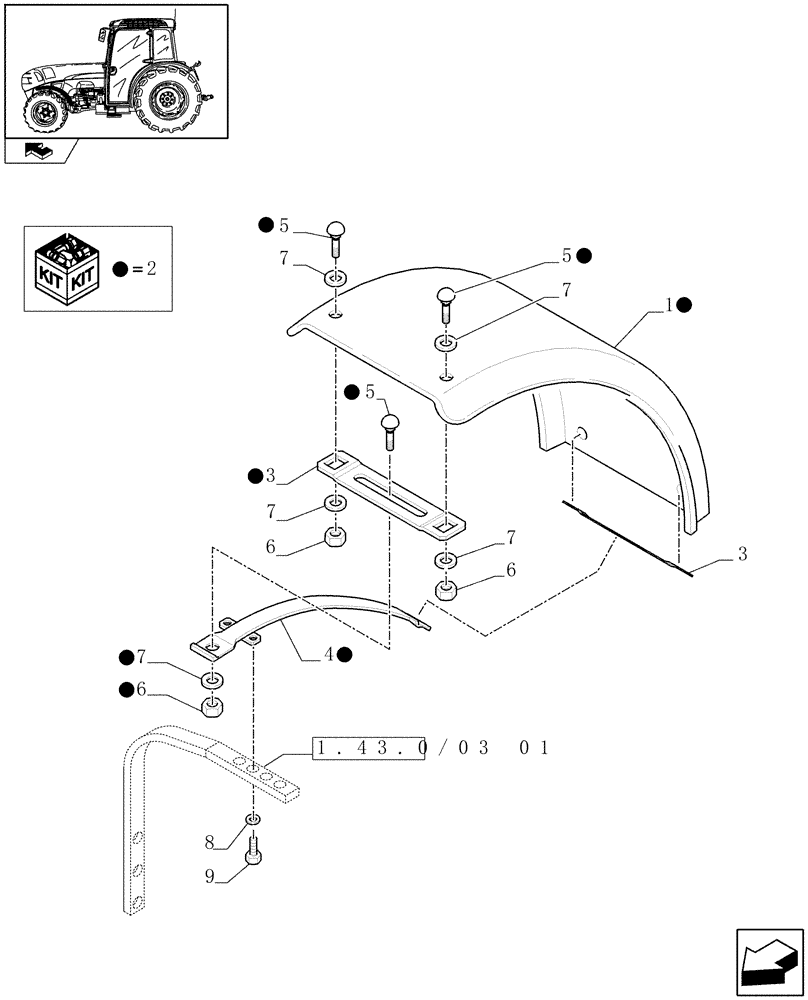

Схема запчастей Case IH FARMALL 75N - (1.43.0/03[02]) - DYNAMIC FRONT FENDERS (310MM, 4WD) - FENDERS AND BRACKETS (VAR.335485 / 743533) (04) - FRONT AXLE & STEERING
6
2
7
2
2
6
3
2
2
7
5
7
7
2
2
3
7
2
2
6
1.43.0/03 01
home
5
2
8
5
9
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5179784

FRONT FENDER

2шт.

2

84328216

FENDER

2шт.

3

47137894

PLATE

4шт.

4

84327279

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

12шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

12шт.

7

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

12шт.

8

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

9

15542724

SCREW,Hex, M12 x 1.25 x 28mm

4шт.
