Запчасти Case IH FARMALL 75N (1.40.3/13) - STD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES - PIPES (VAR.336329) (04) - FRONT AXLE & STEERING

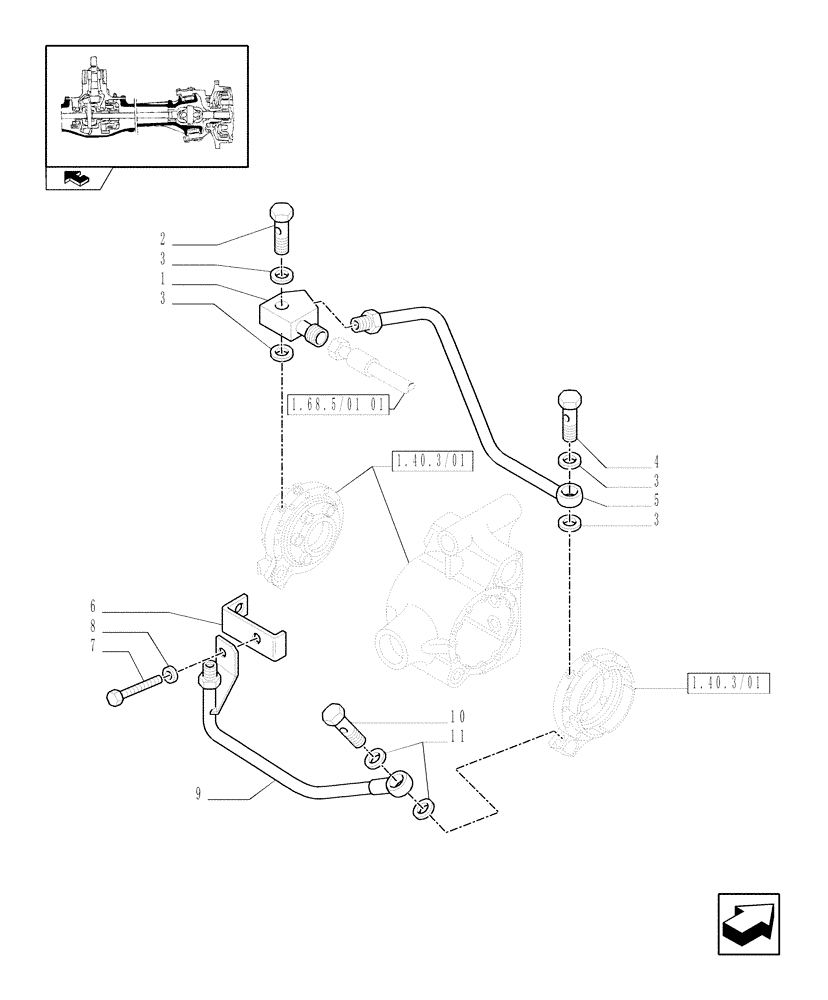

Схема запчастей Case IH FARMALL 75N - (1.40.3/13) - STD FRONT AXLE W/ELECTROHYDR. DIFF. LOCK, W/FRONT BRAKES - PIPES (VAR.336329) (04) - FRONT AXLE & STEERING
3
7
11
2
4
9
1
1.40.3/01
1.40.3/01
1.68.5/01 01
home
3
3
3
10
5
6
8

Артикул

Название

Примечание

Количество

1

5190118

SWIVEL CONNECTION

1шт.

2

5190123

BANJO BOLT,Hex, M10 x 1 x 43.4mm

1шт.

3

10284460

WASHER,M10.2 x 16 x 1.5, Copper

4шт.

4

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

5

5190119

RIGID TUBE

1шт.

6

47137851

BRACKET

1шт.

75N Model, 85N Model, 95N Model

1шт.

7

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

75N Model, 85N Model, 95N Model

1шт.

8

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

75N Model, 85N Model, 95N Model

1шт.

9

47137842

RIGID TUBE

1шт.

75N Model, 85N Model, 95N Model

1шт.

10

10184311

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

75N Model, 85N Model, 95N Model

1шт.

11

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

2шт.

75N Model, 85N Model, 95N Model

1шт.

Выбрано товаров: 17
