(1.40.3/10[02]) - STD FRONT AXLE W/EL.-HYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - AXLE - SHAFT ARTICUL. (VAR.336329)

Запчасти Case IH FARMALL 75N (1.40.3/10[02]) - STD FRONT AXLE W/EL.-HYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - AXLE - SHAFT ARTICUL. (VAR.336329) (04) - FRONT AXLE & STEERING

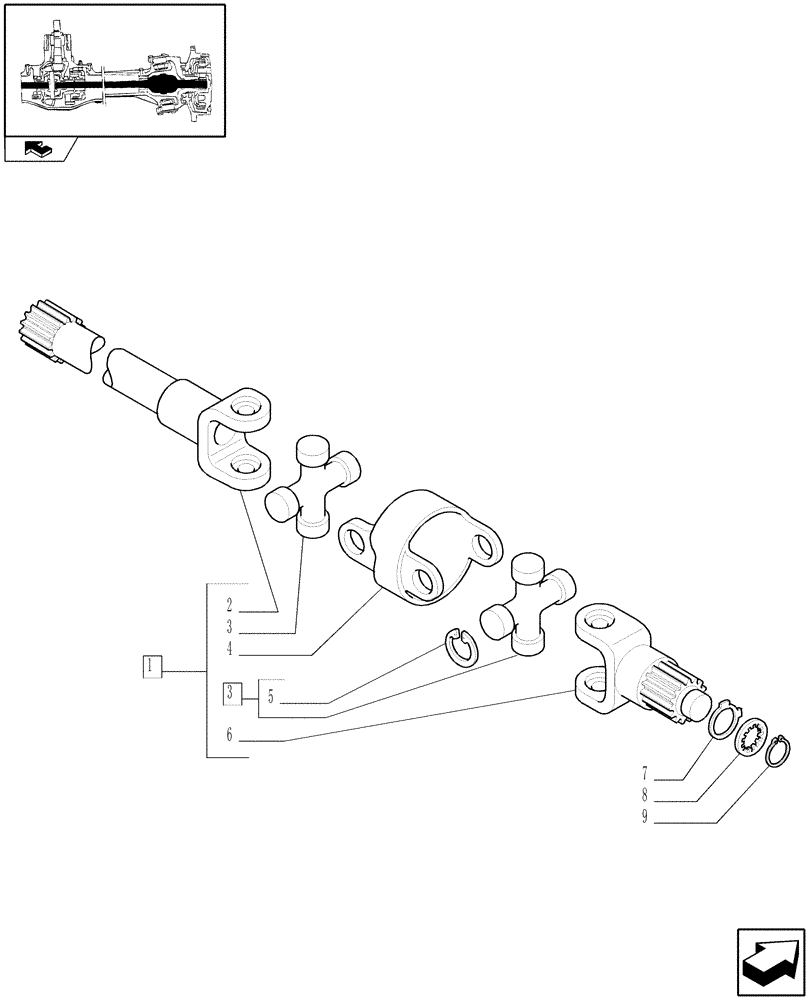

Схема запчастей Case IH FARMALL 75N - (1.40.3/10[02]) - STD FRONT AXLE W/EL.-HYDR. DIFF. LOCK, W/FRONT BRAKES (40 KM/H) - AXLE - SHAFT ARTICUL. (VAR.336329) (04) - FRONT AXLE & STEERING
3
3
8
1
6
9
4
home
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87314114

HALF SHAFT

ASSY

2шт.

2

87314125

SUPPORT

Diff.Side

2шт.

3

87314131

SUPPORT

4шт.

4

87314116

BODY

2шт.

5

87314133

LOCKING RING

16шт.

6

87314132

YOKE

Wheel Side

2шт.

7

87313809

WASHER

2шт.

8

87313810

WASHER

2шт.

9

87313812

SNAP RING

D=40

2шт.

Выбрано товаров: 9
