Запчасти Case IH FARMALL 75N (1.40.1/02[02]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - SENSOR (04) - FRONT AXLE & STEERING

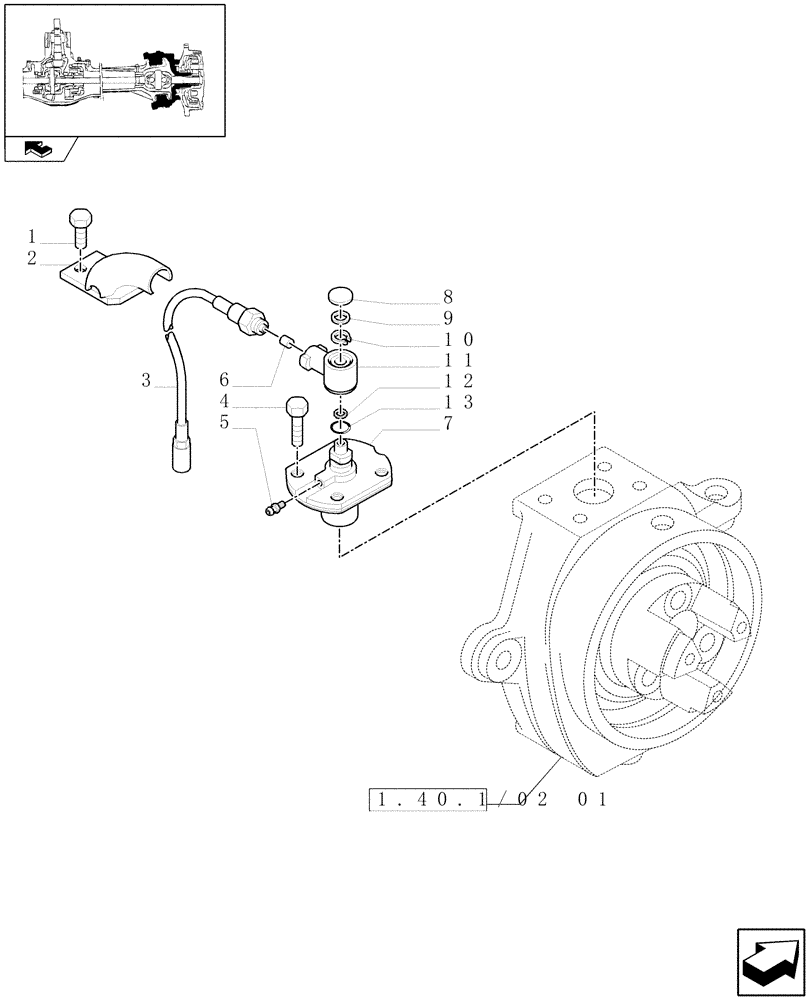

Схема запчастей Case IH FARMALL 75N - (1.40.1/02[02]) - STANDARD FRONT AXLE WITH ELECTROHYDR. DIFF. LOCK LESS FRONT BRAKES (40 KM/H) - SENSOR (04) - FRONT AXLE & STEERING
4
12
1
7
5
8
11
13
9
6
3
2
1.40.1/02 01
home
10

Артикул

Название

Примечание

Количество

1

5194269

BOLT

M8 x 20

2шт.

2

5194270

SUPPORT

1шт.

3

87598055

SWITCH

1шт.

4

87515424

SCREW,#12 - 25 x 1 3/4"

M12 x 25

4шт.

5

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

1шт.

6

87350561

PAWL,7mm OD x 10.5mm L

7 x 10

1шт.

7

5194280

PIN

RH

1шт.

8

10158801

PLUG,M20, Tapered, Stainless

1шт.

9

11065970

CIRCLIP,M10

1шт.

10

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

1шт.

11

5180373

BODY

1шт.

12

14452780

O-RING,0.239" ID x 0.07" Width

1шт.

13

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

Выбрано товаров: 13
