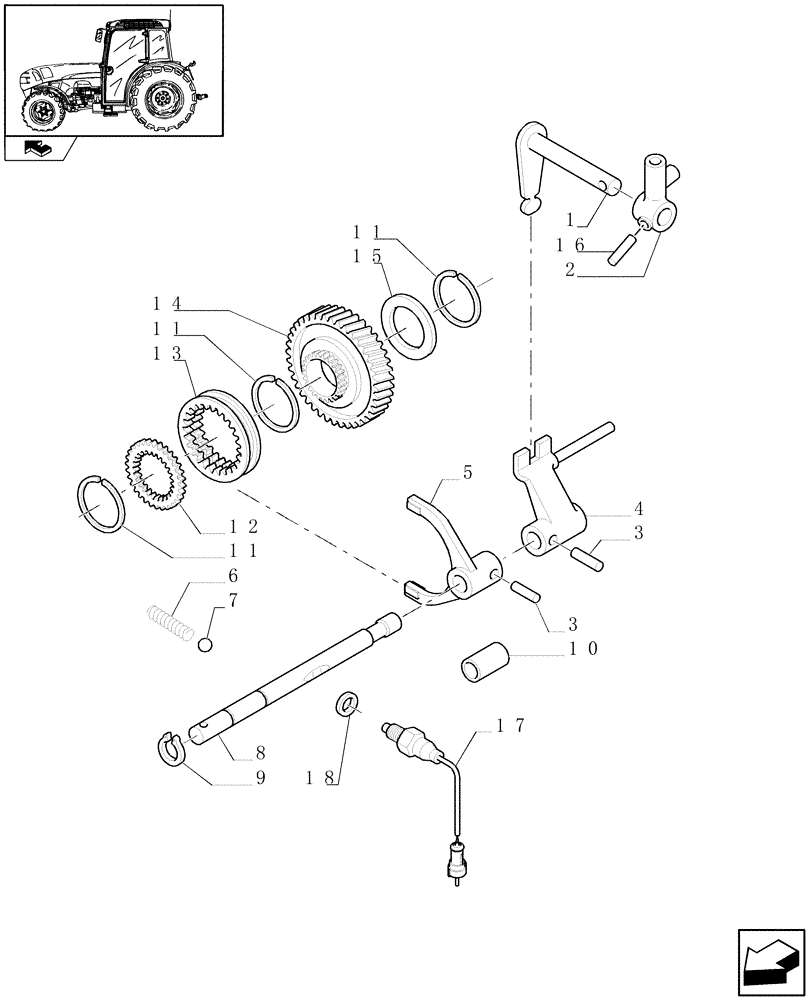

Запчасти Case IH FARMALL 75N (1.28.7/01[02]) - 32X16 HI-LO AND POWER SHUTTLE TRANSMISSION WITH CREEPER - CREEPER GEARSHIFT MECHANISM (VAR.335111) (03) - TRANSMISSION

1

5178144

ROD,117.5mm L

1шт.

2

5187608

HUB

Rev.

1шт.

3

13910370

ROLL PIN,6mm OD x 30mm L

2шт.

4

5178232

DOG

1шт.

5

5173116

YOKE,16mm Hole Dia

1шт.

6

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

7

20063390

BALL,8.73mm OD

D=11/32

1шт.

8

47130803

ROD,15.5mm OD x 352mm L

1шт.

9

13397776

SNAP RING,M16, Int

2шт.

10

5178225

SPACER,22mm ID x 28mm OD x 57mm L

1шт.

11

5168188

SNAP RING,1.5mm Thk, Ext

3шт.

12

5172883

GEAR,50T Internal / 75T External

1шт.

13

5173937

SLEEVE,68mm ID x 75mm OD x 21mm L

1шт.

14

5172888

DRIVEN GEAR,50T / 24T

1шт.

15

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

16

14607370

ROLL PIN,M8 x 45, Slotted

1шт.

17

87585978

SWITCH

Black

1шт.

18

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

M14

1шт.
