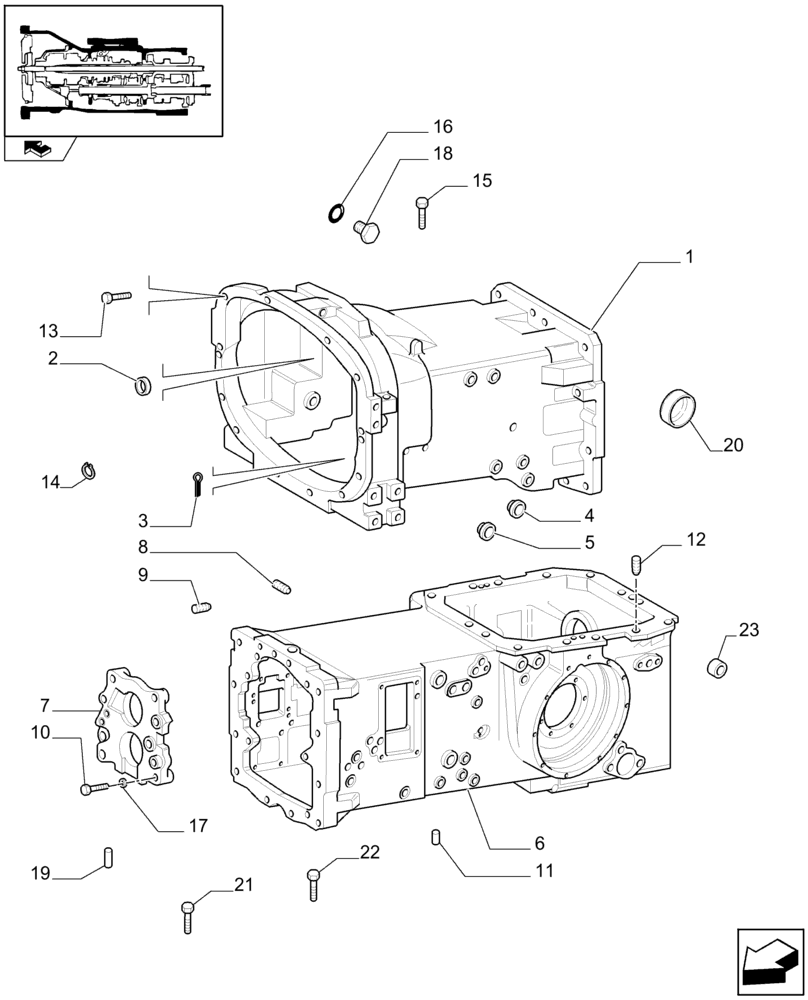

Запчасти Case IH FARMALL 75N (1.21.0[01]) - CLUTCH BOX AND REAR TRANSMISSION BOX (03) - TRANSMISSION

1

87555871

TRANSMISSION HOUSING

, Serial Range: -C7278

1шт.

1

47372845

TRANSMISSION HOUSING

, Start Serial: D7278

1шт.

2

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

4шт.

3

10798204

COTTER PIN,M6.3 x 32

1шт.

4

14329401

PLUG,M45, Tapered

1шт.

5

14328601

PLUG,M18, Tapered

5шт.

6

87353887

TRANSMISSION HOUSING

1шт.

6

87591773

TRANSMISSION HOUSING

1шт.

For Hydraulic Transmission 32x16, VAR.338401

1шт.

7

5183692

COVER

1шт.

8

5153109

DOWEL,10mm OD x 15mm L

M10 x 15

6шт.

9

4988170

PIN,10mm OD x 20mm L

M10 x 20

12шт.

10

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

11

44908048

BUSHING,16mm OD x 14mm L

D=16

2шт.

12

5119529

DOWEL,15mm OD x 22mm L

M15 x 22

2шт.

13

15540734

BOLT,Hex, M12 x 1.25 x 45mm, Cl 10.9

1шт.

14

11198673

LOCK WASHER,13mm ID x 24mm OD x 0.6mm Thk

6шт.

15

15541434

BOLT,M12 x 1.25 x 80mm

2шт.

16

4858609

WASHER,Brass

1шт.

17

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

18

10300714

PLUG,M16 x 1.5 x 14

1шт.

19

4658441

DOWEL,10mm OD x 20mm L

2шт.

21

14331721

HEX SOC SCREW,M12 x 1.25 x 60mm, Cl 8.8, Full Thd

1шт.

20

14329801

PLUG,M32, Tapered

1шт.

22

15541034

BOLT,Hex, M12 x 1.25 x 60mm, Cl 10.9

1шт.

23

5171614

PLUG,27mm OD

2шт.
