Запчасти Case IH FARMALL 110N (35.204.250) - VAR - 341794, 759023 - 3 REMOTE CONTROL VALVES, COMPONENTS (MDC) (35) - HYDRAULIC SYSTEMS

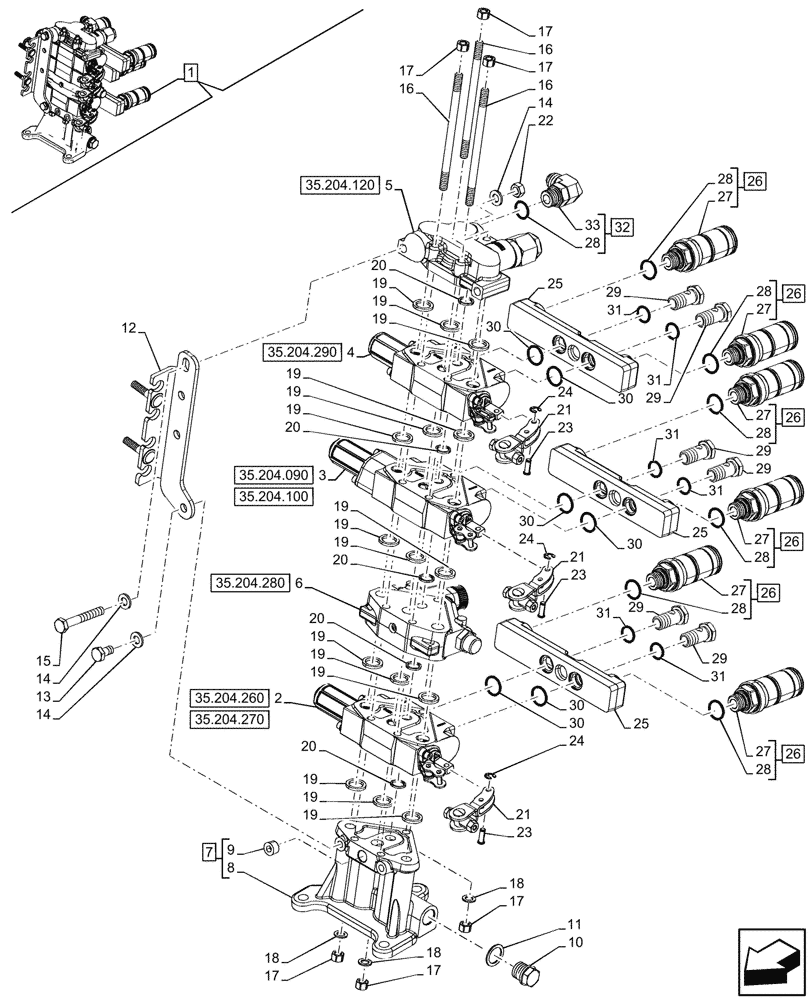

Схема запчастей Case IH FARMALL 110N - (35.204.250) - VAR - 341794, 759023 - 3 REMOTE CONTROL VALVES, COMPONENTS (MDC) (35) - HYDRAULIC SYSTEMS
35.204.270
20
16
31
19
27
19
20
17
19
14
30
19
7
26
1
5
19
23
31
29
18
17
30
19
29
13
28
31
29
8
19
24
19
31
19
15
19
27
27
25
31
3
21
26
29
25
4
17
10
28
27
19
23
30
31
6
26
28
20
30
19
28
21
14
30
23
19
26
26
16
28
18
22
19
28
18
24
19
28
17
33
29
2
16
32
9
27
25
11
17
14
17
24
12
21
26
27
30
20
29
20
35.204.100
35.204.290
35.204.090
35.204.120
35.204.260
35.204.280

Артикул

Название

Примечание

Количество

1

48032904

DISTRIBUTOR

ASSY, 3 Remotes MDC W/O Diverter, Incl 2 - 33

1шт.

2

84406708

DISTRIBUTOR

S/D Effect & Kick Out, ASSY

1шт.

3

84406706

REMOTE CONTROL VALVE

ASSY

1шт.

4

47389206

DISTRIBUTOR

W/Float, ASSY

1шт.

5

87397264

SUPPORT

ASSY

1шт.

6

87397107

CONTROL VALVE

Flow, ASSY

1шт.

7

5176800

FLANGE

ASSY, Incl 8, 9

1шт.

8

5176799

FLANGE

1шт.

9

48054702

PLUG,Hex socket, M16 x 1.5

1шт.

10

10305911

PLUG,M22 x 1.5 x 27

1шт.

11

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

1шт.

12

48031772

BRACKET

1шт.

13

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

3шт.

15

355788

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

16

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

17

5116857

NUT,3/8" - 24

6шт.

18

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

19

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

15шт.

20

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

5шт.

21

47529977

CONTROL LEVER

3шт.

22

86500689

NUT,M10 x 1.5, Cl 10

1шт.

23

5172456

PIN,6mm OD x 20mm L

3шт.

24

11087776

CIRCLIP,Ext., M6, BLO

3шт.

25

5185533

HYD CONNECTOR

3шт.

26

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Incl 27 (Qty 1), 28 (Qty 1)

6шт.

27

NSS

NOT SOLD SEPARAT

Coupling, Incl in 26

6шт.

28

14438085

O-RING,19.3mm ID x 2.4mm

7шт.

29

5168481

BANJO BOLT,M18 x 1.5 x 38mm

6шт.

30

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

6шт.

31

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

32

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Incl 33, 28 (Qty 1)

1шт.

33

NSS

NOT SOLD SEPARAT

Elbow, Incl in 32

1шт.

Выбрано товаров: 33
