Запчасти Case IH FARMALL 110N (35.204.190) - VAR - 759022 - 2 REMOTE VALVES, LINES (35) - HYDRAULIC SYSTEMS

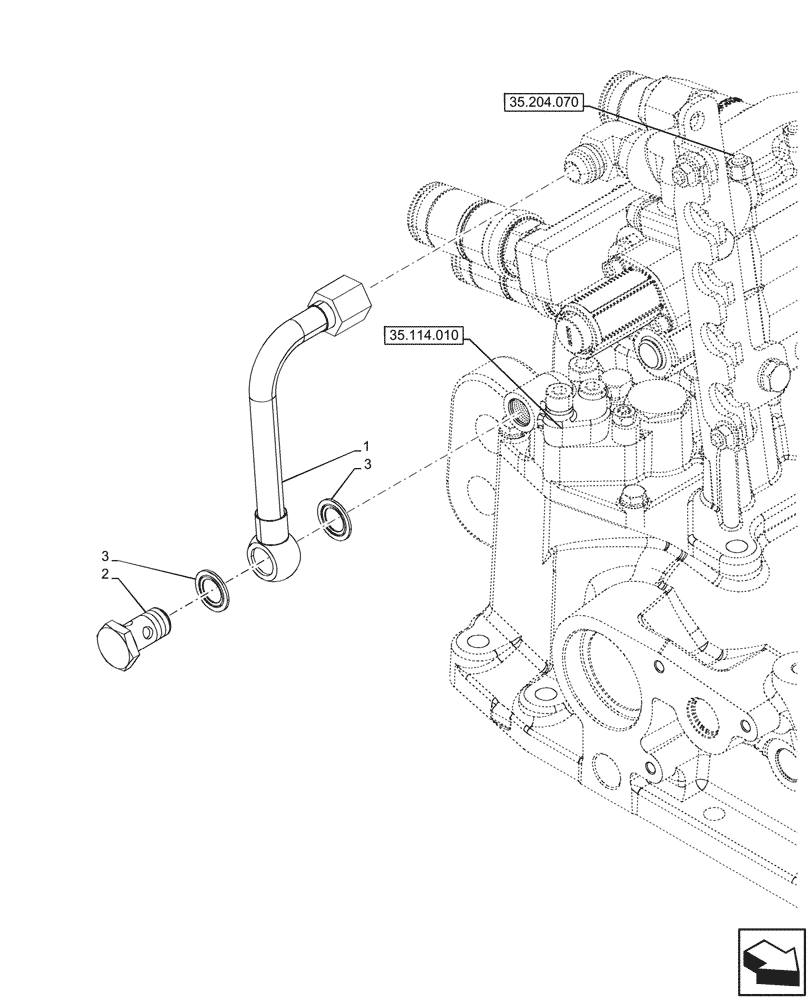

Схема запчастей Case IH FARMALL 110N - (35.204.190) - VAR - 759022 - 2 REMOTE VALVES, LINES (35) - HYDRAULIC SYSTEMS
35.204.070
2
3
1
3
35.114.010

Артикул

Название

Примечание

Количество

1

5173694

RIGID TUBE

Delivery Pipe, from 2 Remote Control Valve to Power Lift Control Valve

1шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

Выбрано товаров: 3
