Запчасти Case IH FARMALL 110N (35.162.010) - VAR - 341975, 341976, 341979, 341980, 743522, 759019 - LINES, CYLINDER, HYDRAULIC LIFT (35) - HYDRAULIC SYSTEMS

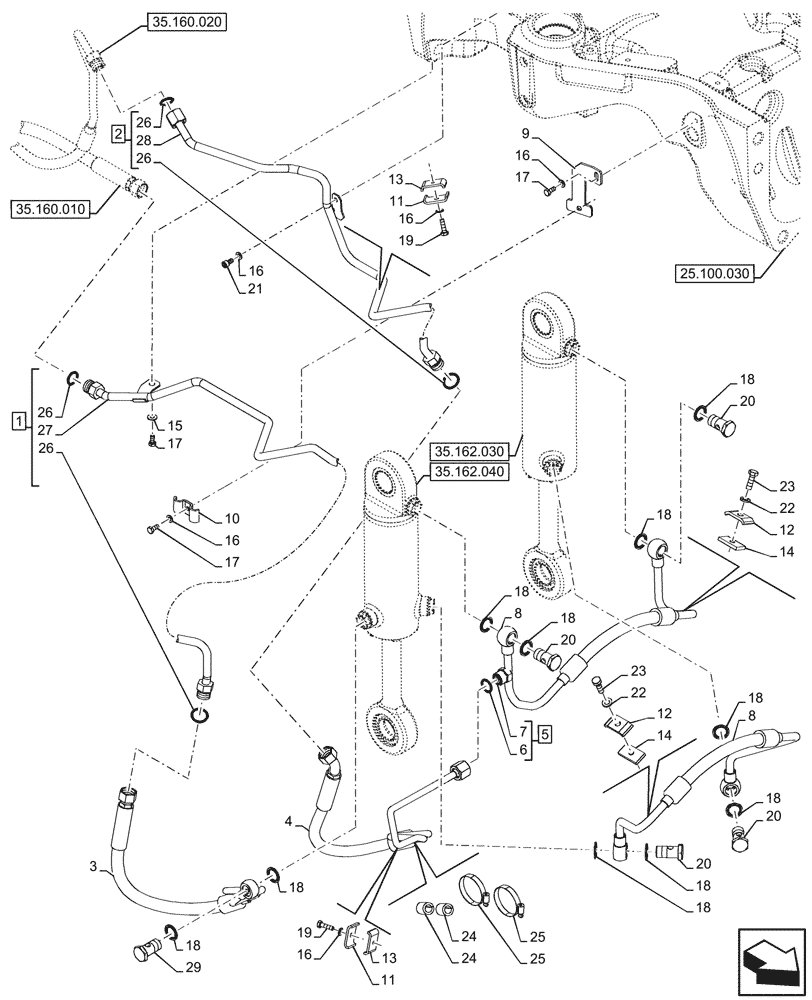

Схема запчастей Case IH FARMALL 110N - (35.162.010) - VAR - 341975, 341976, 341979, 341980, 743522, 759019 - LINES, CYLINDER, HYDRAULIC LIFT (35) - HYDRAULIC SYSTEMS
35.160.010
23
20
24
29
13
25
3
22
16
35.162.040
26
18
23
21
26
14
10
2
12
14
13
18
8
1
16
17
18
15
11
7
18
27
8
16
20
18
18
4
22
24
18
17
5
18
11
19
16
12
28
9
25
17
20
26
18
26
19
6
20
18
16
35.162.030
25.100.030
35.160.020

Артикул

Название

Примечание

Количество

1

47659004

PIPE

ASSY, from Remote Valve Line to Front Lift Cylinder Line, Incl 26 (Qty 2), 27

1шт.

2

47941248

PIPE

ASSY, from Front Lift Cylinder Line to Remote Valve Line, Incl 26 (Qty 2), 28

1шт.

3

47854444

PIPE

from Remote Valve Line to Front Right Lift Cylinder

1шт.

4

47854447

PIPE

from to Front Right Lift Cylinder Remote Valve Line

1шт.

5

47703934

PIPE

ASSY, from Left Lift Cylinder to Remote Valve Line, Incl 6, 7

1шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

1шт.

8

47705686

PIPE

from Right Lift Cylinder to Left Lift Cylinder

1шт.

9

47676580

BRACKET

1шт.

10

44906584

RETAINER COLLAR,12mm ID

1шт.

11

5193550

CLAMP,6.5mm ID

2шт.

12

84519154

HOSE CLAMP

2шт.

13

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

2шт.

14

47712659

BRACKET

2шт.

15

11193279

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD

1шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

5шт.

17

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

3шт.

18

87667806

SEALING WASHER,18mm ID x 26mm OD x 1.5mm

10шт.

19

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

2шт.

20

5170235

BANJO BOLT,M18 x 1.5 x 35mm

4шт.

21

63582

HEX SOC SCREW,M6 x 12mm, Cl 8.8

1шт.

22

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

23

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

24

47706907

RUBBER SEAL,12mm ID x 19mm OD x 25mm L

2шт.

25

14560187

COLLAR,199mm L

2шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

27

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

2шт.

28

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

29

5105699

BANJO BOLT

1шт.

Выбрано товаров: 29
