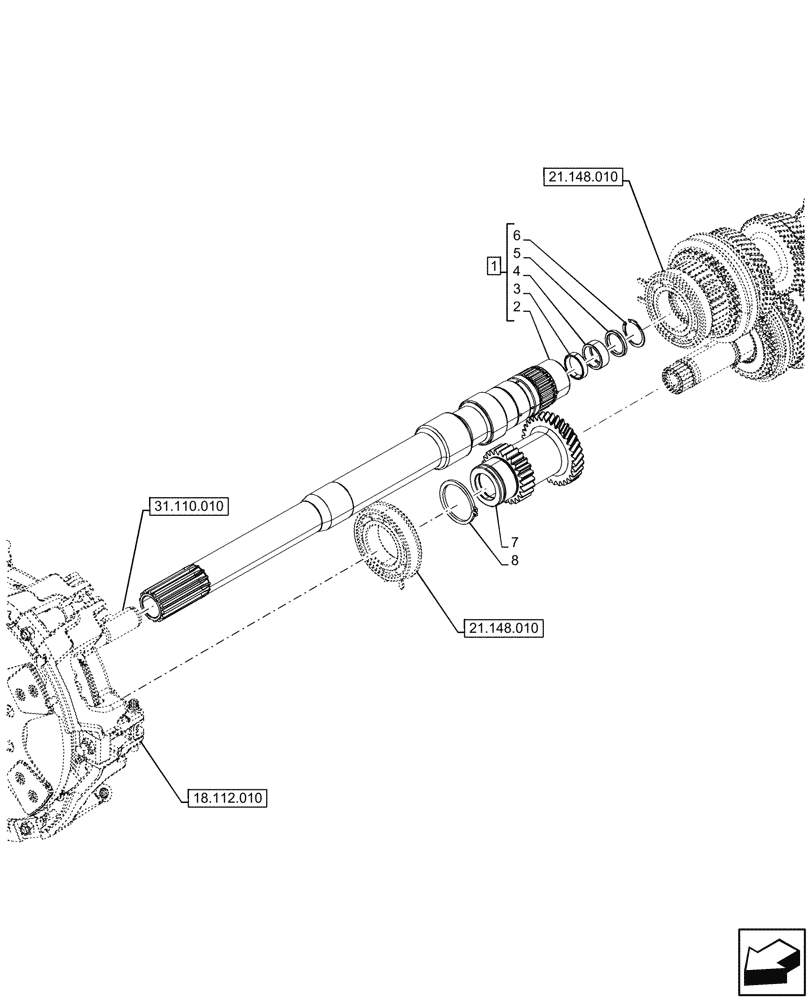

Запчасти Case IH FARMALL 110N (21.148.100) - VAR - 743548 - TRANSMISSION, GEARS & SHAFT, W/O CREEPER (21) - TRANSMISSION

1

NS

NOT SERVICED

ASSY, Incl 2 - 6

1шт.

Serviced Through Components

1шт.

2

47941671

CLUTCH INPUT SHAFT,33.3/45.6mm ID x 39.4/49.6mm OD x 686mm L, 14/24T

Shaft, 656mm, Incl in 1

1шт.

3

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

4

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

5

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

6

5180152

CIRCLIP,27.8mm ID

1шт.

7

5176997

GEAR,33T / 24T

Z 33, Z 24

1шт.

8

5138419

SNAP RING,M50

1шт.
