Запчасти Case IH FARMALL 105N (1.28.1/03[01]) - SPLITTER 32X16 - CLUTCH SHAFT, GEARS AND SYNCH (VAR.330118 / 743508) (03) - TRANSMISSION

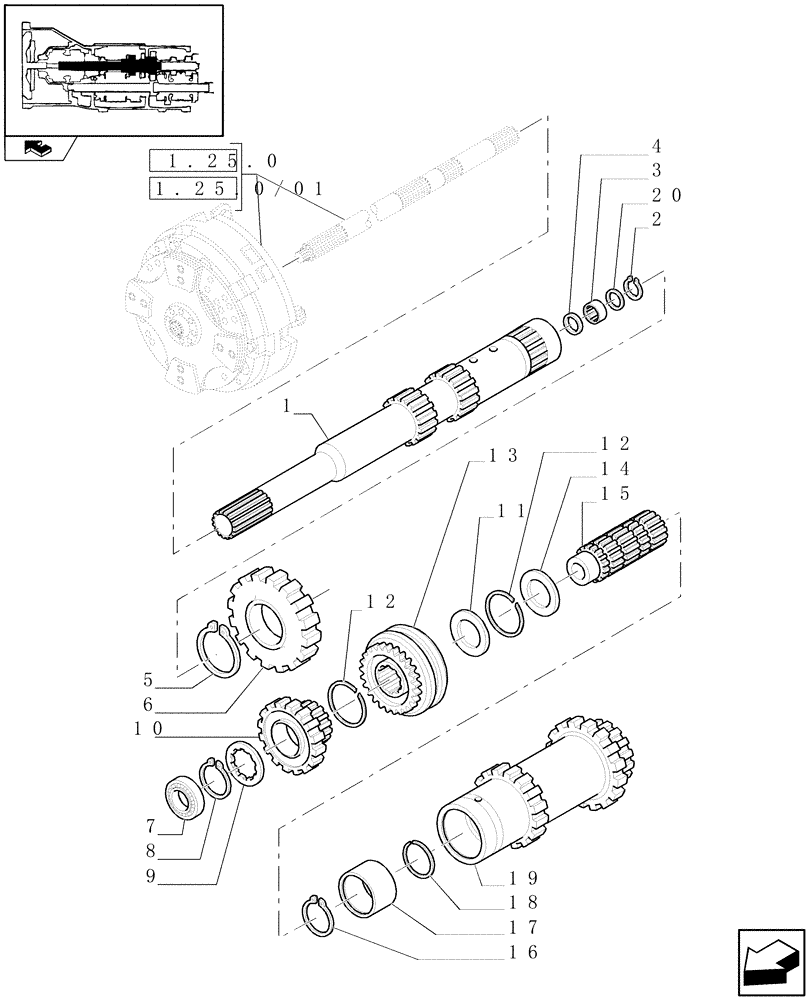

Схема запчастей Case IH FARMALL 105N - (1.28.1/03[01]) - SPLITTER 32X16 - CLUTCH SHAFT, GEARS AND SYNCH (VAR.330118 / 743508) (03) - TRANSMISSION
20
16
8
13
1.25.0/01
3
12
1
12
14
5
1.25.0
home
2
7
11
6
19
4
10
18
17
15
9

Артикул

Название

Примечание

Количество

1

5177461

CONTROL SHAFT

1шт.

2

5180152

CIRCLIP,27.8mm ID

1шт.

3

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

4

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25 x 31 x 7

1шт.

5

5173975

CIRCLIP,50.8mm ID x 3mm Thk

D=55

1шт.

6

5173945

GEAR,40T

Splitter

1шт.

7

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

8

5123651

SNAP RING,36mm, External

D=40

1шт.

9

5177039

THRUST WASHER,52mm OD x 2.5mm Thk, 12T

1шт.

10

5177566

DRIVEN GEAR,36T

Splitter

1шт.

11

87692063

SPACER,40.2mm ID x 81.2mm OD x 3mm L

1шт.

12

5168195

SNAP RING,1.5mm Thk, Ext

2шт.

13

87670089

SYNCHRONIZER,74mm Dia, 12/40T

1шт.

14

5173403

SPACER

1шт.

15

5177564

DRIVEN SHAFT,86.5mm

Splitter

1шт.

16

5173957

THRUST WASHER,39mm OD x 1.5mm Thk

1шт.

17

5173915

SPACER,50mm ID x 58mm OD x 34mm L

1шт.

18

5168188

SNAP RING,1.5mm Thk, Ext

1шт.

19

5177574

GEAR,33T / 24T

Rev./4th

1шт.

20

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

Выбрано товаров: 20
