(1.28.1/01[01]) - 28X16 FOR 16X16 MECHANICAL TRANSMISSION WITH CREEPER - CLUCTH SHAFT (VAR.330111)

Запчасти Case IH FARMALL 105N (1.28.1/01[01]) - 28X16 FOR 16X16 MECHANICAL TRANSMISSION WITH CREEPER - CLUCTH SHAFT (VAR.330111) (03) - TRANSMISSION

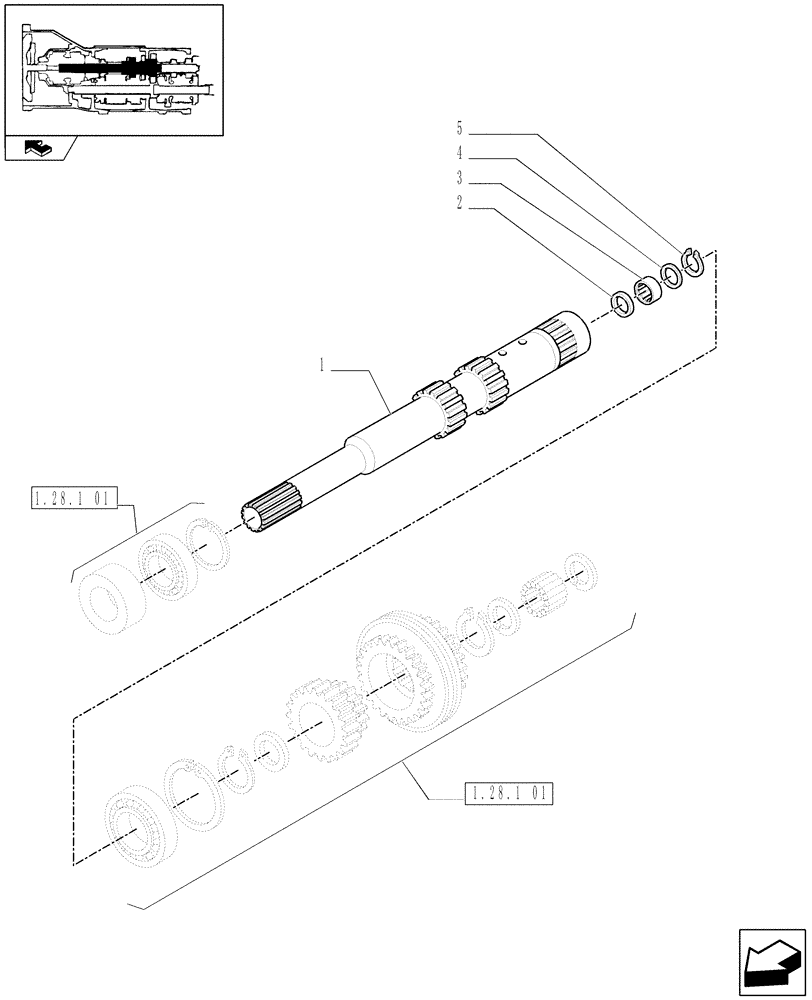

Схема запчастей Case IH FARMALL 105N - (1.28.1/01[01]) - 28X16 FOR 16X16 MECHANICAL TRANSMISSION WITH CREEPER - CLUCTH SHAFT (VAR.330111) (03) - TRANSMISSION
1.28.1 01
home
1.28.1 01
3
5
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5177461

CONTROL SHAFT

1шт.

2

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

25 x 31 x 7

1шт.

3

5181211

BEARING ASSY,Needle, 25mm ID x 32mm OD x 12mm W

1шт.

4

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

5

5180152

CIRCLIP,27.8mm ID

1шт.

Выбрано товаров: 5
