(1.27.3/01[02]) - 2WD AND 4WD STANDARD TRACTION SELECTION WITH 32X16 HYDR. TRANSM. - CLUTCH ENGAGEM., COVER MIT PLUGS (VAR.337402 / 743513; VAR.338401)

Запчасти Case IH FARMALL 105N (1.27.3/01[02]) - 2WD AND 4WD STANDARD TRACTION SELECTION WITH 32X16 HYDR. TRANSM. - CLUTCH ENGAGEM., COVER MIT PLUGS (VAR.337402 / 743513; VAR.338401) (03) - TRANSMISSION

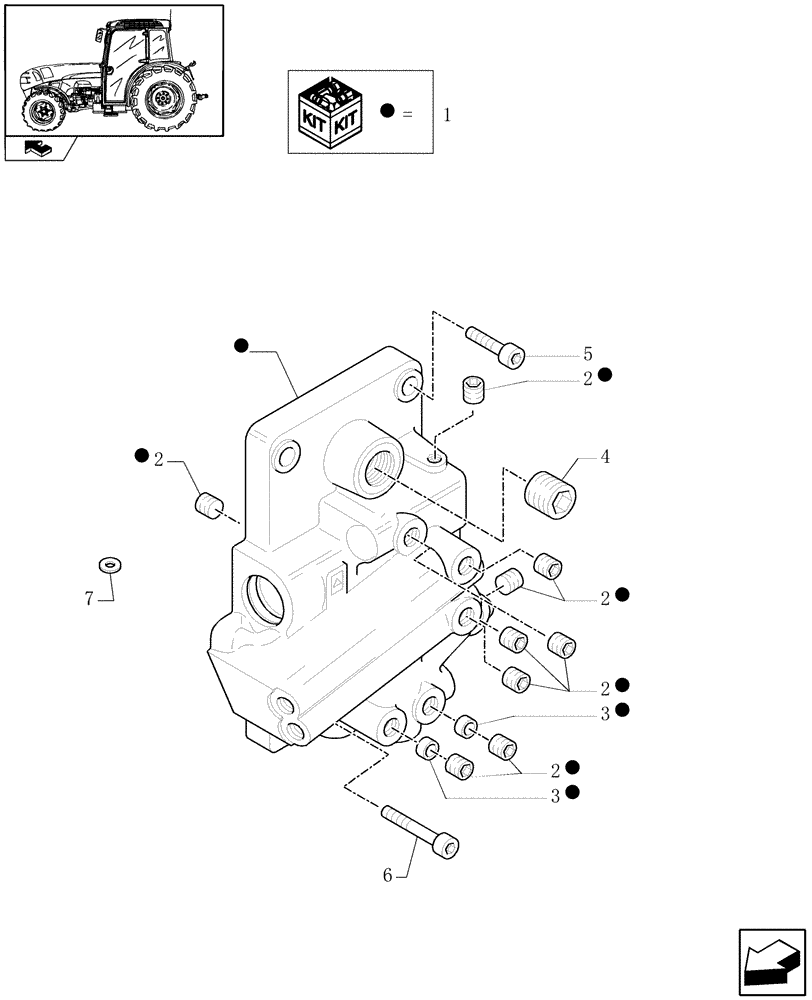

Схема запчастей Case IH FARMALL 105N - (1.27.3/01[02]) - 2WD AND 4WD STANDARD TRACTION SELECTION WITH 32X16 HYDR. TRANSM. - CLUTCH ENGAGEM., COVER MIT PLUGS (VAR.337402 / 743513; VAR.338401) (03) - TRANSMISSION
2
2
1
5
1
2
1
1
1
3
4
2
1
7
home
2
3
1
1
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126470

COVER

ASSY, Incl 2-4

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

7шт.

3

5173959

HYD CONNECTOR

2шт.

4

14329801

PLUG,M32, Tapered

1шт.

5

14307630

HEX SOC SCREW,M10 x 1.25 x 35mm, 10.9

2шт.

6

14307821

HEX SOC SCREW,M10 x 1.25 x 45mm, Cl 8.8

2шт.

7

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

Выбрано товаров: 7
